T3 Series Multi-Function Power Meters – Advanced Electrical Measurement Solutions
The T3 Series Multi-Function Power Meters by TAIK, manufactured in Taiwan, are designed for comprehensive multi-parameter measurement of electrical systems.
Built with cutting-edge technology, the T330 Series delivers outstanding accuracy, safety, and reliability for all types of installations.
-
Fully compliant with IEC and DIN international standards.
-
Capable of measuring a wide range of electrical parameters, ideal for monitoring and control applications in power systems.
Discover precision and performance you can trust with the T330 Series.

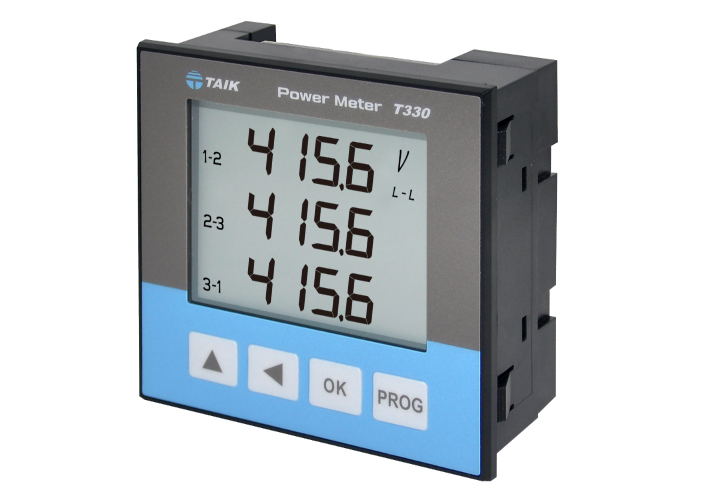

T330 Power Meter
FEATURES:
-
- User-friendly
- Cost-effective
- Quick installation
- Light and short depth
- Quick setup parameters
- Energy-saved protection mode
Introduction.
Features
- True RMS measurement
- Dual energy measurement
- Installation without using mounting clips
- THD measurement up to 31st harmonics
- Measurement in 1P/3P3W/3P4W systems
- Actual demand/max. demand in watt & current
- Modbus RS485 communication or pulse output
- ON Hour indication as the auxiliary supply being powered on
Accuracy
- Interface: RS 485
- Protocol: MODBUS, RTU
- Baud rate: 1200 ~ 38400 programmable
- Address: 1 ~ 255 programmable
- Data format: N.8.1, N.8.2, O.8.1, E.8.1
- Parallel connection: Up to 32 meters
