T4 Series – Smarter, Safer Capacitor Control
| Features | Benefits |
|---|---|
| Advanced Smart Monitoring • Measures Cos∅, current, voltage, and harmonics in real time. |
Gain full visibility and ensure optimal system performance. |
| Intelligent Control Program • Real-time capacitor power detection and adaptive switching. |
Maximize system efficiency and extend capacitor lifespan. |
| Multi-Information LCD Display • Clear, user-friendly interface. |
Easy operation and fast system status updates. |

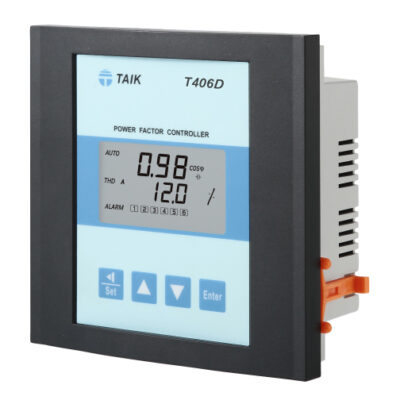

| Flexible Model Options • T406D (6 steps), T412D (12 steps), T407M (7 steps), T414M (14 steps). |
Tailor your system with the exact number of steps you need. |
| RS485 Modbus RTU Communication | Seamlessly integrate into larger energy management systems. |
| Cooling Fan Connection Port | Protect capacitors and maintain system stability during continuous operation. |
| Parallel Connection of Up to 32 Units | Expand your system easily — control more capacitor steps when needed. |
| Complies with IEC and DIN Standards | Meet international safety and performance requirements. |
Intelligent Reactive Power Regulators
Features
- Precise measurement in each capacity of the connected in-line capacitors.
- No need of the site engineer for actual measurement in the life expectancy of the used capacitors.
- Combined applications of the power quality meter and the power factor controller for the most optimized controlling.
- Intelligent self-detecting mode to target a smooth compensation process.
Communication:
- Interface………………………………………….…RS 485
- Protocol ……………………………………………MODBUS, RTU
- Baud rate …………….………………….……….1200 ~ 38400 programmable
- Address …….………………………………………..1 ~ 255 programmable
- Data format …………………………………………N.8.1, N.8.2, O.8.1, E.8.1
- Parallel connection ………………………………Up to 32 meters
Functions:
- Auto/Manual operating mode. Measured parameters in A, V, VA, Watt, Var, PF, Hz, ℃, THD-V, THD-I.
- Direct reading in each parameter represented by a clear symbol. illuminated on LCD screen.
- Independent alarm to be energized the FAN for the temp. cooling around the inner cabinet.
- Bargraphic indication for A, V and Temp. Versatile switching modes for configuring an optimized PF target.
- Auto-reversal correction in a wrong phase sequence. Initially memorized parameters for the switched-on capacitors.
- Actual operating memorized parameters for the switched-on capacitors. Running-hour time of the switched-on capacitor.
- Recording for a number of times of the switched-on capacitor. Indication of the abnormal status events.
- Built-in input temperature sensor. THD-I/THD-V components in % set-up for switching off the capacitor.
- Alarm set-up for the measured under/over-current/voltage in %. Adjustable delay time set-up for switching-on/off the capacitor.
