T2 Series Multi-Function Power Meters – Advanced Electrical Measurement Solutions
The T2 Series Multi-Function Power Meters by TAIK, manufactured in Taiwan, are designed for comprehensive multi-parameter measurement of electrical systems.
Built with cutting-edge technology, the T2 Series delivers outstanding accuracy, safety, and reliability for all types of installations.
-
Fully compliant with IEC and DIN international standards.
-
Capable of measuring a wide range of electrical parameters, ideal for monitoring and control applications in power systems.
Discover precision and performance you can trust with the T2 Series.

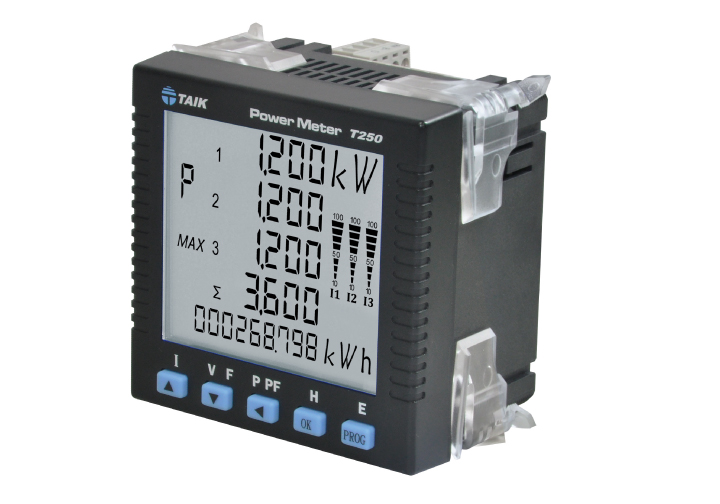

T250 Power Meter
FEATURES:
-
- User-friendly
- Cost effective
- Output modules on actual demand
- Direct access to the measured display
- Measurement in 1P/3P3W/3P4W systems
Features
- Energy-saved protection mode.
- Large legend texts shown on backlit LCD.
- Plug-in output modules.
- Fully programmable VT&CT ratios.
- True rms measurement.
- THD measurement up to 31st harmonic.
- Individual current/voltage harmonics.
- Relay contact, analog and pulse outputs.
- Modbus RTU 485 communication.
- DIN 96×96 mm enclosure.
- Digital inputs for input detecting status.
- Actual demand/Max demand current/ active power.
- Vertical bargraph indication on the measured current.
Accuracy
- Current 0.2 %
- Voltage 0.2 %
- Active power 0.5 %
- Reactive power 0.5 %
- Apparent power 0.5 %
- Power factor 0.5 %
- Frequency 0.05 %
- Active energy 0.5 % (IEC 62053-22, class 0.5S)
- Reactive energy 2 % (IEC 62053-23, class 2)
- Harmonic 2 %
