Mini Plus PC32 Series

● For use with rigid/solid copper conductors.

● Polycarbonate (PC), UL 94V-2 flame-retardant shell.

● Tiny, easy to handle in the junction box.

● Perfect insertion force saves installation time.

● Single spring design makes no interference for installation.

● Spring force connector constructed from copper plate and stainless spring steel.

● Color-coded for quick and easy identification.

● IEC/EN 60998 Certified Listed.

Mã sản phẩm (Model No.)	Số cực (Poles)	Màu sắc (Color)	Định mức điện (Electrical Ratings)	Tiết diện dây dẫn (Wire Range)	Quy cách đóng gói (Packing)
PC322	2	Red + Clear	• 24A, 450V, T85	• 0,2 – 2,5 mm² • Solid and Rigid Stranded	• 1,000 Pcs/Bag • 10,000 Pcs/Ct

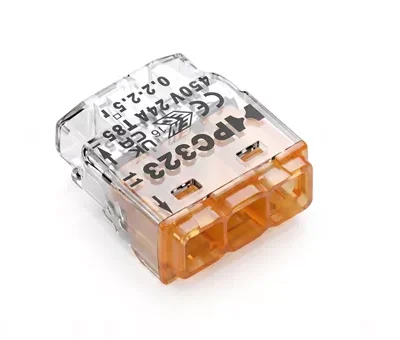

PC323	3	Orange + Clear	• 24A, 450V, T85	• 0,2 – 2,5 mm² • Solid and Rigid Stranded	• 1,000 Pcs/Bag • 10,000 Pcs/Ct

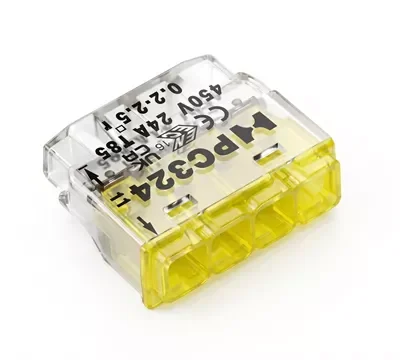

PC324	4	Yellow + Clear	• 24A, 450V, T85	• 0,2 – 2,5 mm² • Solid and Rigid Stranded	• 500 Pcs/Bag • 5,000 Pcs/Ct

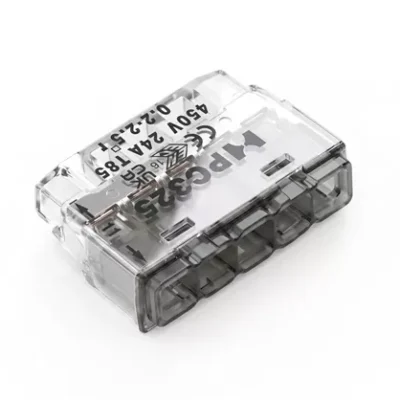

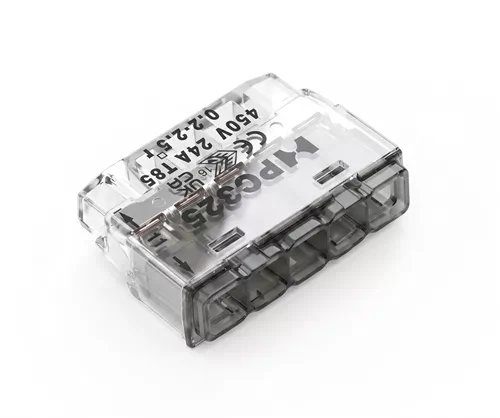

PC325	5	Grey + Clear	• 24A, 450V, T85	• 0,2 – 2,5 mm² • Solid and Rigid Stranded	• 500 Pcs/Bag • 5,000 Pcs/Ctn
