Lever Type Releasable Connectors

● Accept conductors 0.2 – 4.0 mm².

● Re-usable and for use with rigid/solid and flexible/stranded conductors.

● Polycarbonate (PC), flame-retardant shell to UL 94V-0 housing. Polyamide (PA) levers.

● Transparent shell allows visual inspection of wire insertion and proper stripping length.

● Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.

● Re-usable and for use with rigid/solid and flexible/stranded conductors.

Mã sản phẩm (Model No.)	Số cực (Poles)	Màu sắc (Color)	Định mức điện (Electrical Ratings)	Tiết diện dây dẫn (Wire Range)	Quy cách đóng gói (Packing)

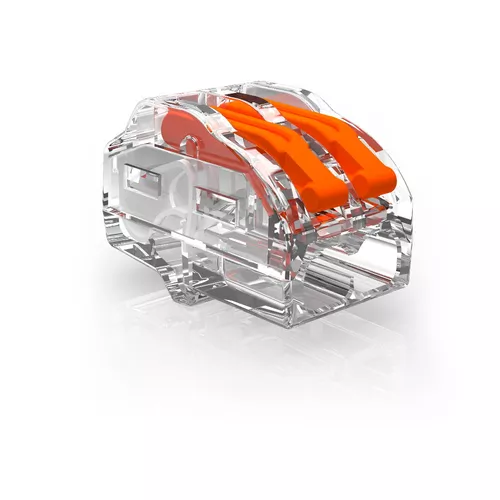

PC622	2	Orange lever	• 32A, 450V, T85 • 600V, 105°C (221°F)	• 0.2 – 4.0 mm², Rigid / Flexible • 28 – 14 AWG, Sol/Str Cu • 12 AWG, Sol Cu	• 500 Pcs/Bag • 5,000 Pcs/Ctn
PC623	3	Orange lever	• 32A, 450V, T85 • 600V, 105°C (221°F)	• 0.2 – 4.0 mm², Rigid / Flexible • 28 – 14 AWG, Sol/Str Cu • 12 AWG, Sol Cu	• 500 Pcs/Bag • 5,000 Pcs/Ctn

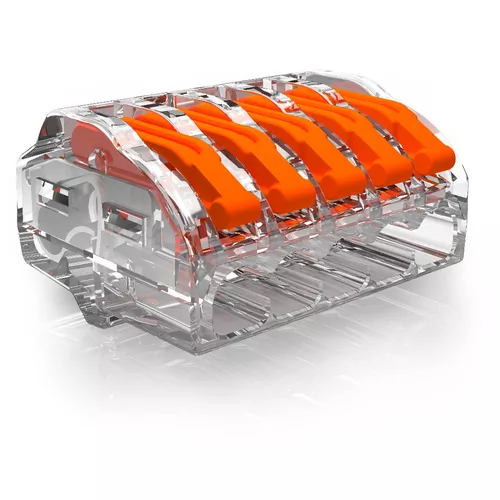

PC625	5	Orange lever	• 32A, 450V, T85 • 600V, 105°C (221°F)	• 0.2 – 4.0 mm², Rigid / Flexible • 28 – 14 AWG, Sol/Str Cu • 12 AWG, Sol Cu	• 300 Pcs/Bag • 3,000 Pcs/Ctn
