Unik Pro PC35x Series

● For use with rigid/solid and flexible stranded conductors.

● For Building, Home Appliances and Lighting wiring.

● Polycarbonate (PC) flame-retardant to UL 94V-0.

● Spring force connector constructed from tinned copper with spring steel.

● Rated to 600V maximum for building wiring and 1000V maximum lighting fixtures and signs.

● Compact size fits most of the small junction boxes.

Description

Thông số kỹ thuật chi tiết

Mã sản phẩm (Model No.)	Số cực (Poles)	Màu sắc (Color)	Định mức điện (Electrical Ratings)	Tiết diện dây dẫn (Wire Range)	Quy cách đóng gói (Packing)
PC352X	2	Yellow (Vàng)	• 24A, 450V, T85 • 600V, 105°C (221°F)	• 0,5 – 2,5 mm², Sol. • 1 – 2,5 mm², Rigid. • 22-12 AWG, Sol.Cu • 18-22 AWG, Str.Cu • 22-14 AWG, Tin-dipped Str.Cu	• 500 Pcs/Bag • 5,000 Pcs/Ctn
PC353X	3	Orange (Cam)	• 24A, 450V, T85 • 600V, 105°C (221°F)	• 0,5 – 2,5 mm², Sol. • 1 – 2,5 mm², Rigid. • 22-12 AWG, Sol.Cu • 18-22 AWG, Str.Cu • 22-14 AWG, Tin-dipped Str.Cu	• 400 Pcs/Bag • 4,000 Pcs/Ctn
PC354X	4	Clear (Trong suốt)	• 24A, 450V, T85 • 600V, 105°C (221°F)	• 0,5 – 2,5 mm², Sol. • 1 – 2,5 mm², Rigid. • 22-12 AWG, Sol.Cu • 18-22 AWG, Str.Cu • 22-14 AWG, Tin-dipped Str.Cu	• 300 Pcs/Bag • 3,000 Pcs/Ctn

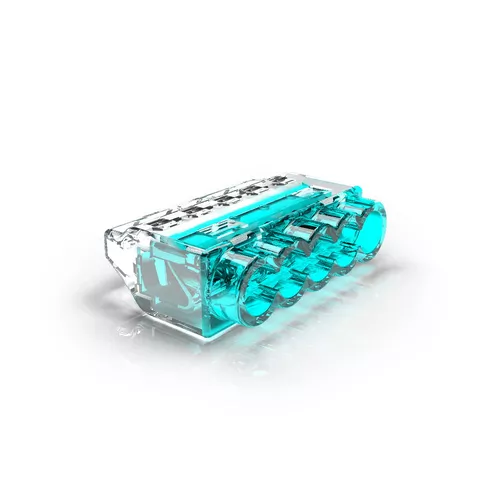

PC355X	5	Blue (Xanh dương)	• 24A, 450V, T85 • 600V, 105°C (221°F)	• 0,5 – 2,5 mm², Sol. • 1 – 2,5 mm², Rigid. • 22-12 AWG, Sol.Cu • 18-22 AWG, Str.Cu • 22-14 AWG, Tin-dipped Str.Cu	• 300 Pcs/Bag • 3,000 Pcs/Ctn
PC356X	6	Purple (Tím)	• 24A, 450V, T85 • 600V, 105°C (221°F)	• 0,5 – 2,5 mm², Sol. • 1 – 2,5 mm², Rigid. • 22-12 AWG, Sol.Cu • 18-22 AWG, Str.Cu • 22-14 AWG, Tin-dipped Str.Cu	• 250 Pcs/Bag • 2,500 Pcs/Ctn

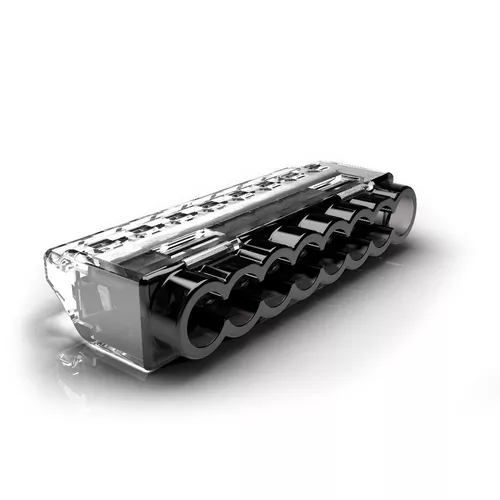

PC358X	8	Black (Đen)	• 24A, 450V, T85 • 600V, 105°C (221°F)	• 0,5 – 2,5 mm², Sol. • 1 – 2,5 mm², Rigid. • 22-12 AWG, Sol.Cu • 18-22 AWG, Str.Cu • 22-14 AWG, Tin-dipped Str.Cu	• 200 Pcs/Bag • 2,000 Pcs/Ctn
