Mini Pro PC21 Series

● For use with rigid/solid conductors.

● Polycarbonate (PC), flame-retardant to UL94V-0.

● Spring force connector constructed from tinned copper or steel plate with copper strip and spring steel.

● Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.

● Color-coded for quick and easy identification.

Mã sản phẩm (Model No.)	Số cực (Poles)	Màu sắc (Color)	Định mức điện (Electrical Ratings)	Tiết diện dây dẫn (Wire Range)	Quy cách đóng gói (Packing)
PC212	2	Red (Đỏ)	• 24A, 450V, T85 • 600V, 105℃ (221℉)	• 0,5 – 2,5 mm², Rigid • 22-12 AWG, Sol • 22-14 AWG, Tin-bonded Str	• 1,000 Pcs/Bag • 10,000 Pcs/Ctn

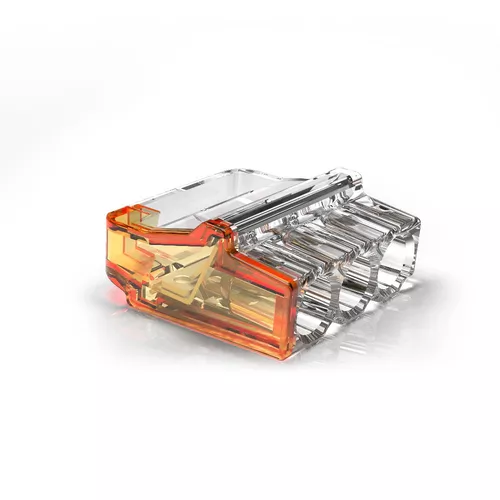

PC213	3	Orange (Cam)	• 24A, 450V, T85 • 600V, 105℃ (221℉)	• 0,5 – 2,5 mm², Rigid • 22-12 AWG, Sol • 22-14 AWG, Tin-bonded Str	• 1,000 Pcs/Bag • 10,000 Pcs/Ctn

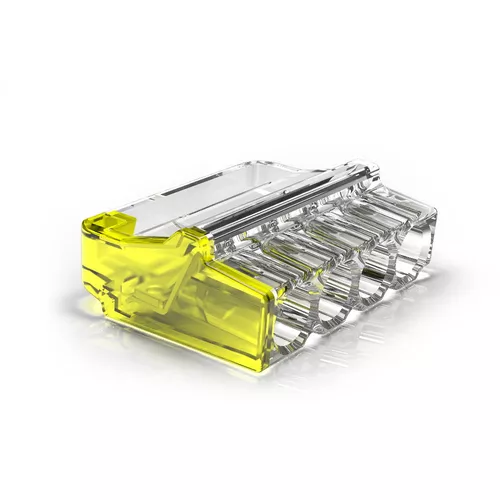

PC214	4	Yellow (Vàng)	• 24A, 450V, T85 • 600V, 105℃ (221℉)	• 0,5 – 2,5 mm², Rigid • 22-12 AWG, Sol • 22-14 AWG, Tin-bonded Str	• 500 Pcs/Bag • 5,000 Pcs/Ctn
PC215	5	Grey (Xám)	• 24A, 450V, T85 • 600V, 105℃ (221℉)	• 0,5 – 2,5 mm², Rigid • 22-12 AWG, Sol • 22-14 AWG, Tin-bonded Str	• 500 Pcs/Bag • 5,000 Pcs/Ctn
