Current transformers with analogue output CELSA

Current Transformer and Transducer in One Housing

Standard analogue output 0 – 20 mA / 0 – 10 V

The measured quantity (i.e. primary current) is galvanically insulated (5kV/1min), rectified (mean value principle) and converted into a proportional and load-independent DC signal current (or voltage).

Design features:

Cases of self-extinguishing polycarbonate UL 94 – V0
Double secondary terminals, for short circuiting the secondary winding before opening the measuring circuit
Mounting brackets for the panel mounting and fixing clamps for the fixing to the primary bus bar are included

SKU: SCMU Category: CELSA Tags: Current transformers with analogue output CELSA, Split core current transformers CELSA Brand: CELSA

Description

Current Transformers with Analogue Output CELSA

Please review the following options and select the models that best suit your installation requirements:

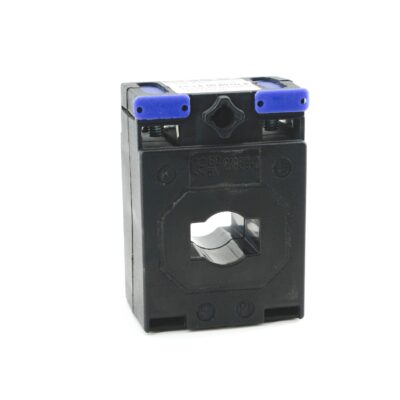

SCMU210s

Dimension: 70 x 50 x 34 mm

Analog output: 0-20mA or 0-10V / without Auxiliary supply

Range: 30 … 50A

Primary bar: 20x10mm ; Φ 16 mm

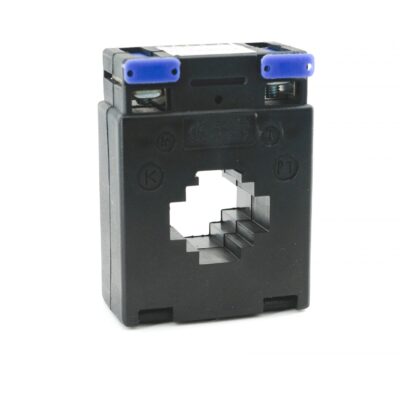

SCMU

Dimension: 80 x 60 x 30 mm

Analog output: 0-20mA or 0-10V / without Auxiliary supply

Range: 60 … 600A

Primary bar: 30x10mm ; Φ 28 mm

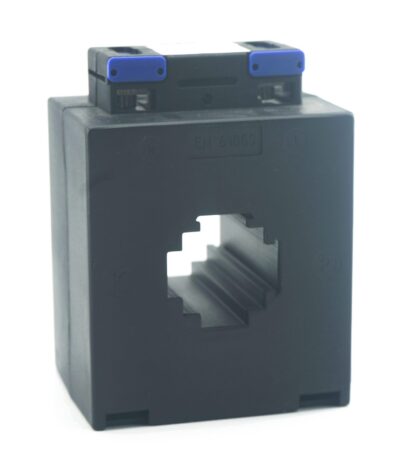

SCMU/I

Dimension: 100.8 x 76 x 60 mm

Analog output: 4-20mA / Auxiliary supply: 230VAC or 24VDC

Range: 10 … 600A

Primary bar: 30x10mm ; Φ 13 mm
