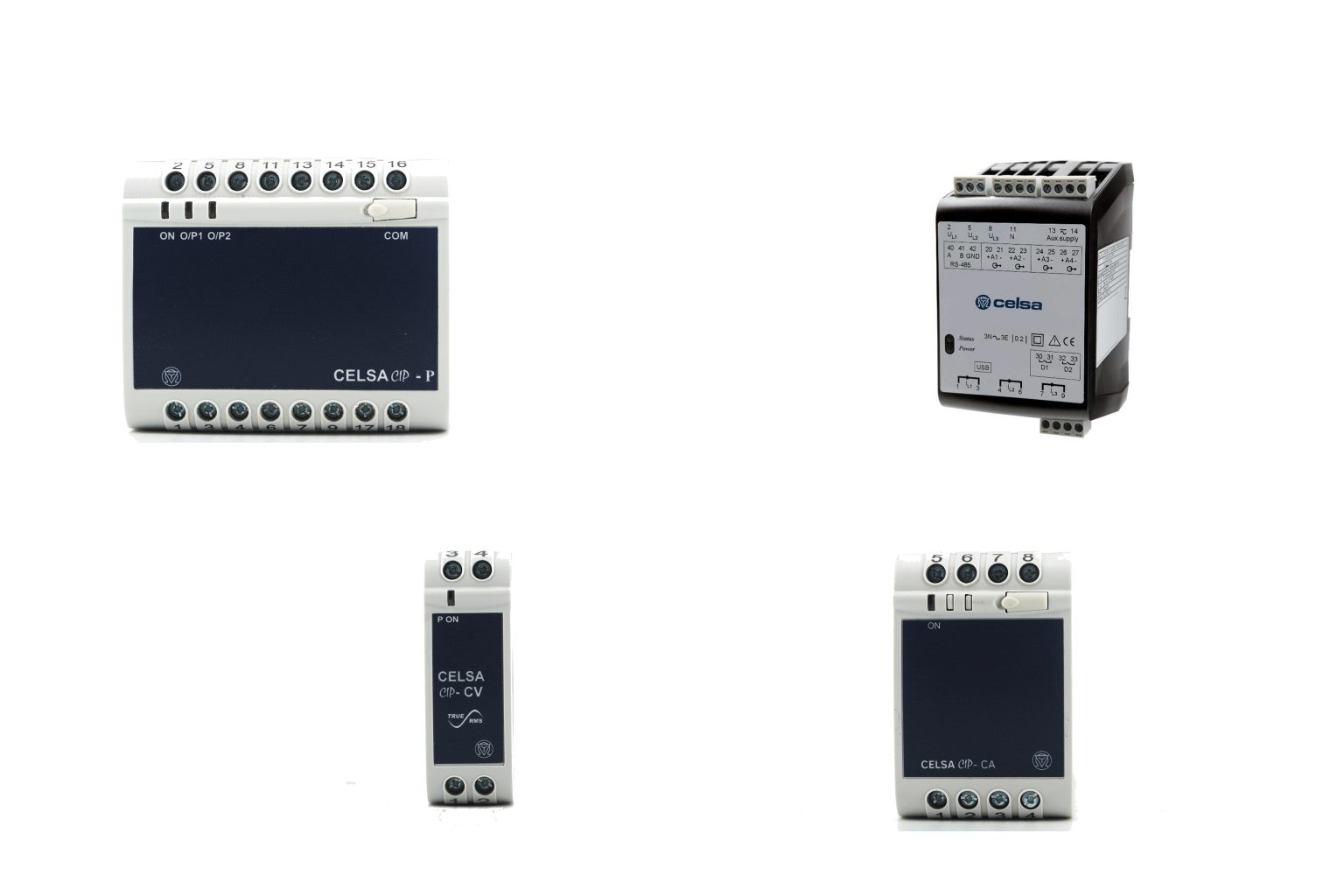

Compact and reliable, our current – voltage – frequency and power transducers ensure precise measurement of sinusoidal AC signals, with easy DIN-rail installation and support for extended ranges via external transformers.
Please select the transducer models that best fit your installation needs.

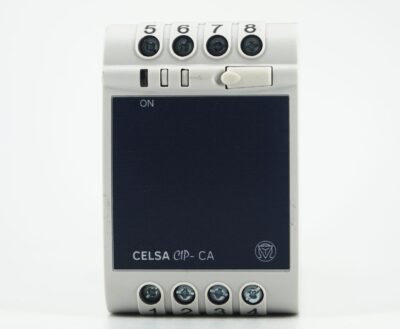

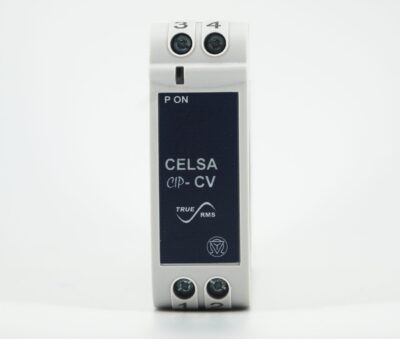

The transducer CIP-CA / CIP-CV convert a sinusoidal AC current or AC voltage into load independent DC current or a load independent DC voltage proportional to the measured value.
CIP-CA-CV
Type: Voltage / Current
Class: 0.2
Dimensions: 65.5 x 22.5 x 100.5 mm
The transducers CIP-V / CIP-I are used to measure and convert AC voltaje or current input into a load independent DC current or voltage output signal. Output signal generated is proportional to the root mean square value of the input current or voltage
CIP-V-I
Type: Voltage / Current DC
Class: 0.2
Dimensions: 65.5 x 43.75 x 106.5 mm

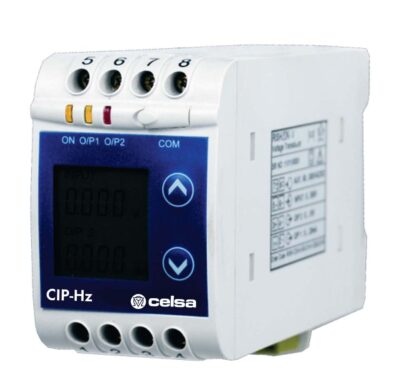

The CIP-Hz transducer is used for frequency measurement. The output signal is proportional to measured frequency and is either load independent DC current or DC voltage.
CIP-Hz
Type: Frequency
Class: 0.2
Dimensions: 65.5 x 43.75 x 106.5 mm

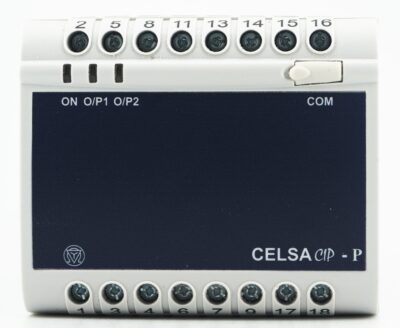

The CIP-P is used to measure and convert active or reactive power in to a single-phase or three-phase AC system with balanced or unbalanced load into a proportional load independent DC current or voltage output signal.
CIP-P
Type: Active or Reactive power
Class: 0.2
Load: Balance or Unbalanced
Dimensions: 65.5 x 78.5 x 106.5 mm

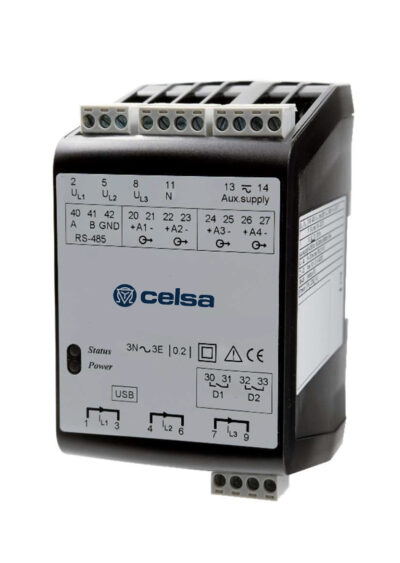

DIN rail, fully programmable, high accuracy, the multi-transducer, can be used with 50, 60 or 16⅔ Hz rated frequencies with a wide range of AC and DC auxiliary supply. This transducer can measure active and reactive powers, power factors, and all other electrical quantities including voltage and current for any 3-phase system. The CPQT can be easily programmed through its USB micro standard port and ConfigLQT free software.
CPQT2
Output: 2 analog output
Range: +/- 20mA, +/- 5mA or +/-10V
Class: 0.2
Dimensions: 70 x 132 x 101 mm – DIN rail
DIN rail, fully programmable, high accuracy, the multi-transducer, can be used with 50, 60 or 16⅔ Hz rated frequencies with a wide range of AC and DC auxiliary supply. This transducer can measure active and reactive powers, power factors, and all other electrical quantities including voltage and current for any 3-phase system. The CPQT can be easily programmed through its USB micro standard port and ConfigLQT free software.
CPQT4
Output: 4 analog output
Range: +/- 20mA, +/- 5mA or +/-10V
Class: 0.2
Dimensions: 70 x 132 x 101 mm – DIN rail
We hope our products meet your needs and expectations. Thank you for your trust and support!
