Current transformers protective Classic Line
Please review the following options and select the models that best suit your installation requirements:

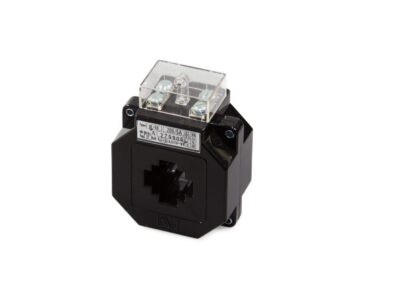

IB-50
Dimension: 105 x 76 x 50 mm
Primary bar: 30×10 mm ; Φ 23 mm
Range: 75 … 600A

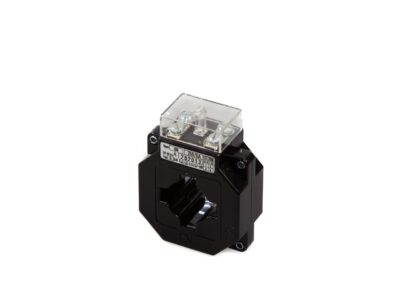

IBG-50
Dimension: 105 x 76 x 50 mm
Primary bar: 40×10 mm ; Φ 30 mm
Range: 150 … 1000A
IBR
Dimension: 115 x 90 x 40 mm
Primary bar: 50×15 mm ; Φ 44 mm
Range: 400 … 1500A
IBR-1
Dimension: 115 x 90 x 40 mm
Primary bar: 60×15 mm ; Φ 44 mm
Range: 400 … 1500A

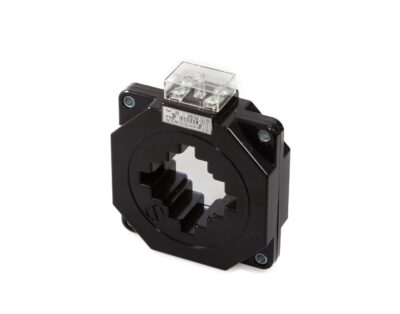

IER
Dimension: 155 x 133 x 46 mm
Primary bar: 80×10 mm ; Φ 50 mm
Range: 250 … 2000A
IER-1
Dimension: 155 x 133 x 46 mm
Round conductor: Φ 80 mm
Range: 200 … 2000A
IER-2
Dimension: 155 x 133 x 46 mm
Primary bar: 3×60 x10 mm
Range: 200 … 2000A
IER-3
Dimension: 155 x 133x 46 mm
Primary bar: 2×80 x10 mm
Range: 200 … 2000A

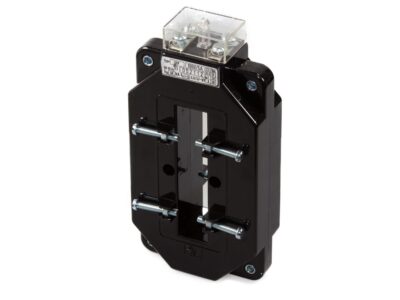

IRP
Dimension: 165 x 120 x 59 mm
Primary bar: 100×20 mm
Range: 750 … 2500A
IRM
Dimension: 180 x 120 x 59 mm
Primary bar: 100×20 mm
Range: 1500 … 4000A
We hope our products meet your needs and expectations. Thank you for your trust and support!
