Split Core Current Transformers CELSA
Openable current transformers made of self-extinguishing polycarbonate (UL 94-V0) with double secondary terminals for safe and easy installation.
Please review the following options and select the models that best suit your installation requirements:
TQ10
Dimension: 29 x 41 x 26 mm
Round conductor: Φ 10 mm
Range: 50 … 60A
TQ18-B
Dimension: 48.8 x 66.7 x 44.5 mm
Round conductor: Φ 18 mm
Range: 150 … 250A
TC18
Dimension: 36 x 50 x 36 mm
Round conductor: Φ 18 mm
Range: 60 … 250A
TC27
Dimension: 48.8 x 66.8 x 44.5 mm
Round conductor: Φ 28 mm
Range: 250 … 500A
TQ42
Dimension: 66 x 97 x 54.6 mm
Round conductor: Φ 42 mm
Range: 400 … 1000A

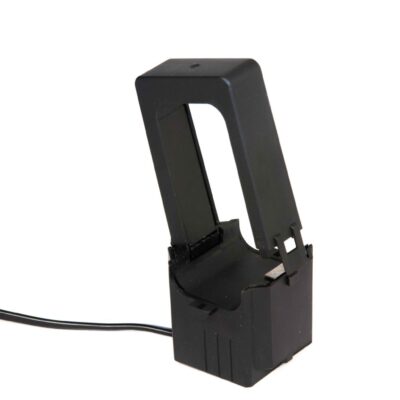

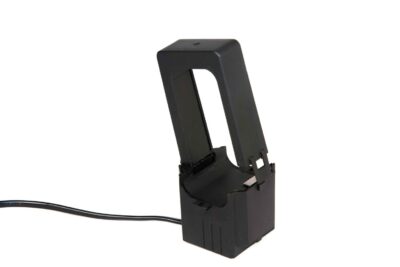

TQ84
Dimension: 66 x 139 x 54.6 mm
Round conductor: 2 x Φ 42 mm
Range: 400 … 1000A
IA23
Dimension: 112 x 92.5 x 40 mm
Primary bar: 30 x 20 mm
Range: 50 … 600A

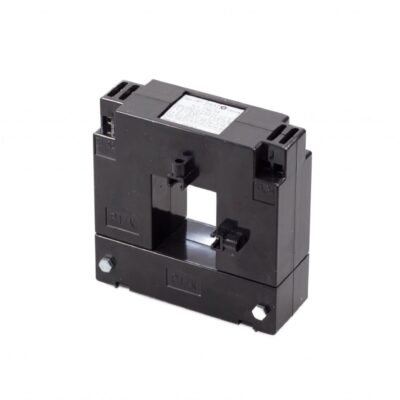

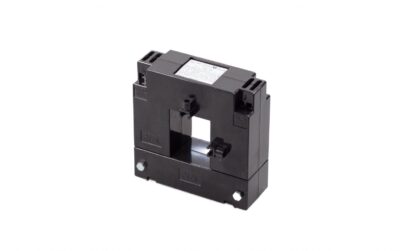

IAP
Dimension: 120 x 122.5 x 43 mm
Primary bar: 2 x 50 x 10 mm; Φ 40 mm
Range: 60 … 100A

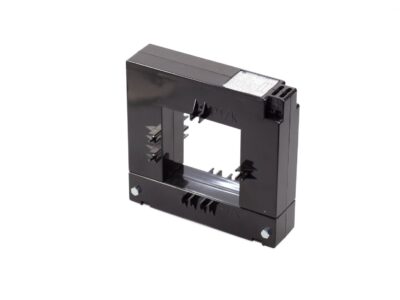

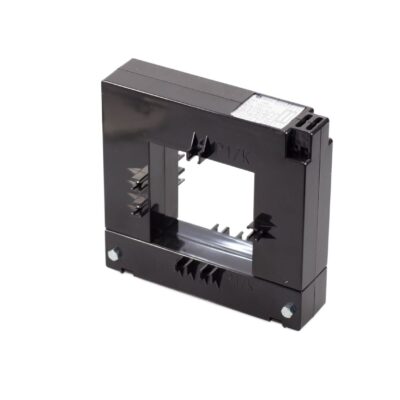

IAM
Dimension: 159 x 154.5 x 39 mm
Primary bar: 40 x 80 x 10 mm; Φ 80mm
Range: 100 … 1500A

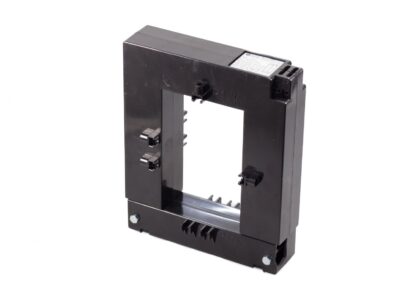

IAG
Dimension: 163 x 199.5 x 41 mm
Primary bar: 4 x 125 x 10 mm; Φ 80mm
Range: 500 … 4000A
IA80
Dimension: 125 x 158 x 40 mm
Primary bar: 55 x 85 mm
Range: 250 … 1500A
IA170
Dimension: 195 x 245 x 40 mm
Primary bar: 85 x 172 mm
Range: 500 … 5000A
We hope our products meet your needs and expectations. Thank you for your trust and support!
