Current transformers are electrical equipment that converts primary currents to proportional secondary currents that are appropriate to the connected measuring instruments.
Current transformers have a primary winding to which the current to be measured is fed. Measuring instruments are connected to a secondary winding. Current transformers are used for measuring and protecting applications.
It is recommended to apply current transformers for currents of 40 A or higher.

Thêm vào sản phẩm yêu thích

SKU: AST Line CTs Category: CELSA Tag: Current transformers AST Line Brand: CELSA

09
Nov

Có thể sử dụng CT bảo vệ thay thế CT đo lường và ngược lại ?!. Comments Off on Có thể sử dụng CT bảo vệ thay thế CT đo lường và ngược lại ?!.
19
Oct

Large-scale multi-tasks solutions Comments Off on Large-scale multi-tasks solutions
19
Oct

Middle and Small scale power monitor solution Comments Off on Middle and Small scale power monitor solution
19
Oct

Paid-by-users solutions Comments Off on Paid-by-users solutions
16
Oct

Nguyên lý hoạt động của biến dòng. Comments Off on Nguyên lý hoạt động của biến dòng.
16
Oct

Các yếu tố cần quan tâm khi chọn biến dòng. Comments Off on Các yếu tố cần quan tâm khi chọn biến dòng.

Description

Current transformers AST Line

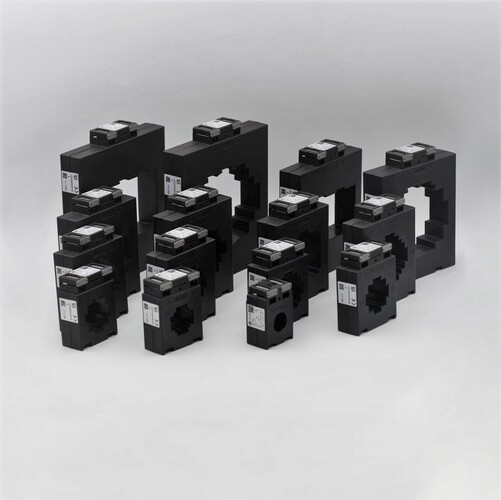

General Characteristics AST LINE

Please review the following options and select the models that best suit your installation requirements:

ASTR21

Dimension: 44 x 66 x 30 mm
Round conductor: Φ 21 mm
Range: 50 … 500A (CL 0.5, 1.0)

ASTMR21

Dimension: 60 x 80 x 30 mm
Round conductor: Φ 21 mm
Range: 50 … 500A (CL 0.5, 1.0)

AST210s

Dimension: 50 x 70 x 34 mm
Primary bar: 20 x 10 mm
Range: 50 … 300A (CL 0.5, 1.0)

AST255s

Dimension: 50 x 70 x 34 mm
Primary bar: 20 x 5 mm ; Φ 21 mm
Range: 50 … 300A (CL 0.5, 1.0)

AST310s

Dimension: 50 x 70 x 34 mm
Primary bar: 30 x 10 mm
Range: 100 … 400A (CL 0.5, 1.0)

AST3R30

Dimension: 60 x 80 x 30 mm
Round conductor: Φ 30 mm
Range: 100 … 800A (CL 0.5, 1.0)

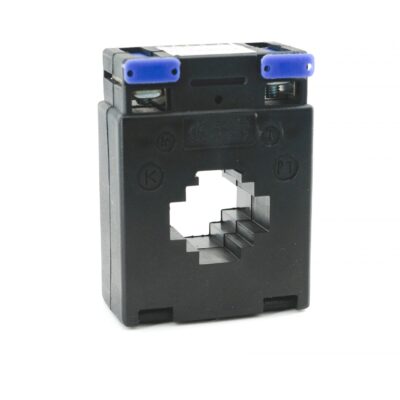

AST310

Dimension: 60 x 80 x 30 mm
Primary bar: 30 x 10 mm
Range: 50 … 800A (CL 0.5, 1.0)

AST315

Dimension: 60 x 80 x 30 mm
Primary bar: 30 x 15 mm
Range: 50 … 750A (CL 0.5, 1.0)

AST4R30

Dimension: 68 x 87 x 40 mm
Round conductor: Φ 30 mm
Range: 60 … 600A (CL 0.5, 1.0)

AST4B312

Dimension: 68 x 87 x 40 mm
Primary bar: 30 x10mm; Φ 30 mm
Range: 60 … 600A (CL 0.5, 1.0)

AST5R30

Dimension: 60 x 80 x 30 mm
Round conductor bar: Φ 30 mm
Range: 50 … 600A (CL 0.5, 1.0)

AST5B312

Dimension: 75 x 100 x 45 mm
Primary bar: 30 x 10mm; Φ 30 mm
Range: 50 … 600A (CL 0.2s, 0.5, 1.0)

AST4R40

Dimension: 70 x 90 x 30 mm
Round conductor: Φ 40 mm
Range: 150 … 1000A (CL 0.5, 1.0)

AST412

Dimension: 70 x 90 x 30 mm
Primary bar: 2x30x10; 40×13; Φ 33 mm
Range: 125 … 1000A (CL 0.2s, 0.5, 1.0)

AST5B412

Dimension: 70 x 90 x 45 mm
Primary bar: 2x30x10; 40×13; Φ 33 mm
Range: 125 … 1000A (CL 0.5, 1.0)

AST5R50

Dimension: 80 x 108 x 30 mm
Round conductor: Φ 50 mm
Range: 100 … 1000A (CL 0.5, 1.0)

AST512

Dimension: 80 x 108 x 30 mm
Primary bar: 50 x 12 mm; Φ 42 mm
Range: 100 … 1500A (CL 0.5, 1.0)

AST6R65

Dimension: 96 x 121 x 30 mm
Round conductor: Φ 65 mm
Range: 200 … 2000A (CL 0.5, 1.0)

AST615

Dimension: 96 x 121 x 30 mm
Primary bar: 60×15/20x50x10/ Φ53 mm
Range: 200 … 2000A (CL 0.5, 1.0)

AST615.5

Dimension: 84 x 108 x 30 mm
Primary bar: 60×15/20x50x10/ Φ52 mm
Range: 200 … 2000A (CL 0.5, 1.0)

AST640

Dimension: 96 x 132 x 30 mm
Primary bar: 80 x 15 mm; Φ 61 mm
Range: 200 … 2000A (CL 0.5, 1.0)

AST815

Dimension: 105 x 121 x 30 mm
Primary bar: 80×15 mm; Φ61 mm
Range: 400 … 2000A (CL 0.2s, 0.5, 1.0)

AST830

Dimension: 105 x 132 x 30 mm
Primary bar: 2x80x10/ Φ70 mm
Range: 400 … 1600A (CL 0.2s, 0.5, 1.0)

AST830V

Dimension: 105 x 132 x 30 mm
Primary bar: 2x80x10/ Φ70 mm
Range: 400 … 1600A (CL 0.5, 1.0)

AST1030

Dimension: 131 x 160 x 30 mm
Primary bar: 2x100x10 mm; Φ 85 mm
Range: 600 … 3200A (CL 0.2s, 0.5, 1.0)

AST1030V

Dimension: 131 x 144 x 30 mm
Primary bar: 2x100x10 mm; Φ85 mm
Range: 600 … 3200A (CL 0.2s, 0.5, 1.0)

AST1056

Dimension: 131 x 161 x 30 mm
Primary bar: 80×15/ Φ61 mm
Range: 600 … 3200A (CL 0.2s, 0.5, 1.0)

AST1256

Dimension: 165 x 145 x 40 mm
Primary bar: 125 x 60 mm
Range: 600 … 3200A (CL 0.5, 1.0)

AST1256V

Dimension: 129 x 181 x 40 mm
Primary bar: 125 x 60 mm
Range: 600 … 3200A (CL 0.5, 1.0)

AST1656

Dimension: 205 x 145 x 40 mm
Primary bar: 165 x 60 mm
Range: 600 … 5000A (CL 0.2s, 0.5, 1.0)

AST1656V

Dimension: 205 x 145 x 40 mm
Primary bar: 165 x 60 mm
Range: 600 … 5000A (CL 0.2s, 0.5, 1.0)

AST1234

Dimension: 159 x 188 x 30 mm
Primary bar: 2x120x10 mm; Φ 96mm
Range: 400 … 4000A (CL 0.5, 1.0)

AST1659

Dimension: 223 x 171 x 35 mm
Primary bar: 165 x 90 mm
Range: 800 … 6000A (CL 0.2s, 0.5, 1.0)

AST1659V

Dimension: 155 x 239 x 35 mm
Primary bar: 165 x 90 mm
Range: 800 … 6000A (CL 0.2s, 0.5, 1.0)

AST1272

Dimension: 159 x 188 x 30 mm
Primary bar: 4x120x10 mm
Range: 400 … 6000A (CL 0.2s, 0.5, 1.0)

AST2065

Dimension: 265 x 151 x 35 mm
Primary bar: 205 x65 mm
Range: 800 … 6000A (CL 0.5, 1.0)

AST2065V

Dimension: 135 x 281 x 35 mm
Primary bar: 205 x65 mm
Range: 800 … 6000A (CL 0.5, 1.0)

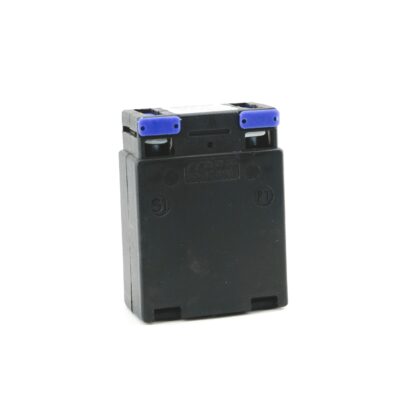

AST3WST

Dimension: 60 x 80 x 30 mm
WST
Range: 5 … 30A (CL 0.5, 1.0)

AST4WST

Dimension: 68 x 87 x 40 mm
WST
Range: 5 … 30A (CL 0.5, 1.0)

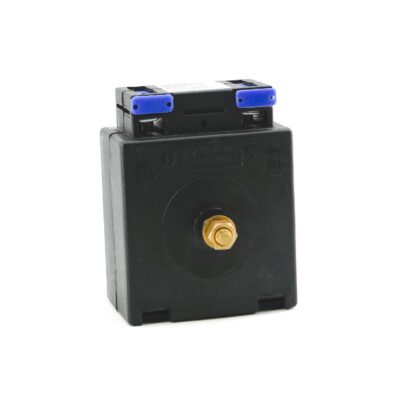

AST4WPL6

Dimension: 68 x 87 x 40 mm
WST
Range: 5 … 30A (CL 0.5, 1.0)

AST5WPL6

Dimension: 75 x 100 x 45 mm
Range: 5 … 30A (CL 0.5, 1.0)

AST5WPL8

Dimension: 75 x 100 x 45 mm
Range: 50 … 80A (CL 0.5, 1.0)

AST5WPL10

Dimension: 75 x 100 x 45 mm
Range: 50 … 100A (CL 0.5, 1.0)
