Measuring Current Transformers – Classic Line
High accuracy measuring transformers designed to saturate at moderate overcurrents (less than 5x In) with sealable covers and double secondary terminals.
Please review the following options and select the models that best suit your installation requirements:

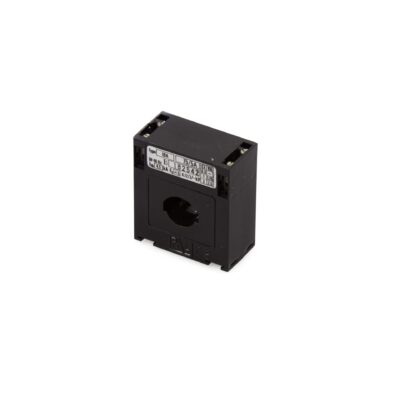

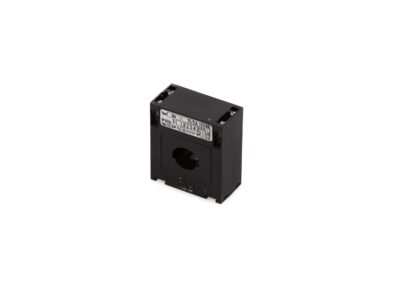

IBA
Dimension: 63 x 56 x 29 mm
Primary bar: 20×5 mm ; Φ 16mm
Range: 40 … 200A
IBP
Dimension: 105 x 76 x 50 mm
Primary bar: 30×10 mm ; Φ 22 mm
Range: 100 … 600A
IB
Dimension: 105 x 76 x 38 mm
Primary bar: 30×10 mm ; Φ 23mm
Range: 50 … 600A
IB-50
Dimension: 105 x 76 x 50 mm
Primary bar: 30×10 mm ; Φ 23mm
Range: 100 … 600A
IBG
Dimension: 100 x 76 x 38 mm
Primary bar: 40×10 mm ; Φ 30 mm
Range: 150 … 1000A

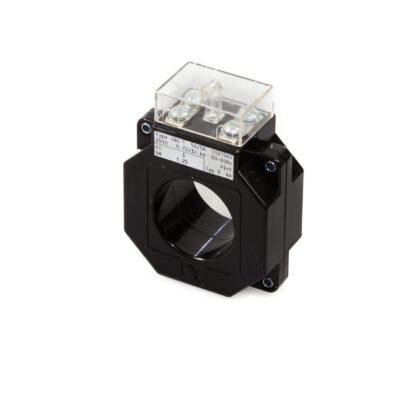

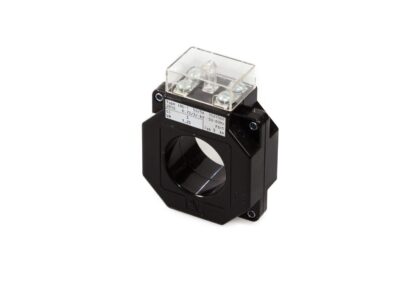

IBG-1
Dimension: 105 x 76 x 38 mm
Round conductor: Φ 40 mm
Range: 150 … 1000A
IBG-50
Dimension: 105 x 76 x 50 mm
Primary bar: 40x10mm ; Φ 30mm
Range: 150 … 1000A
IBR
Dimension: 115 x 90 x 40 mm
Primary bar: 50 x 10mm ; Φ 44mm
Range: 400 … 1600A

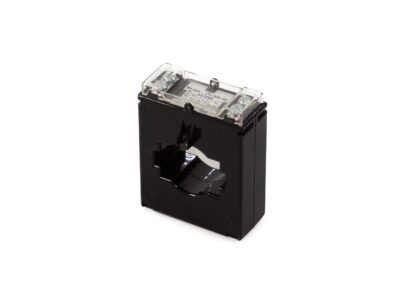

IBR-1
Dimension: 115 x 90 x 40 mm
Primary bar: 60 x 12mm ; Φ 44mm
Range: 400 … 1600A
IER
Dimension: 155 x 133 x 46 mm
Primary bar: 80 x 10mm ; Φ 50mm
Range: 250 … 2000A

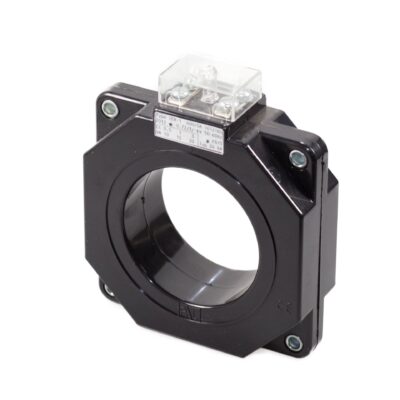

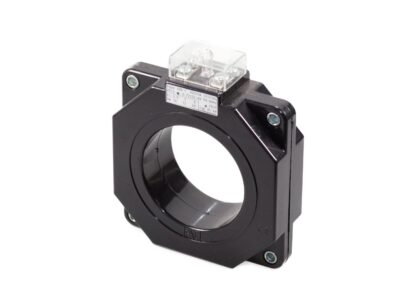

IER-1
Dimension: 155 x 133 x 46 mm
Round conductor: Φ 80mm
Range: 250 … 2000A

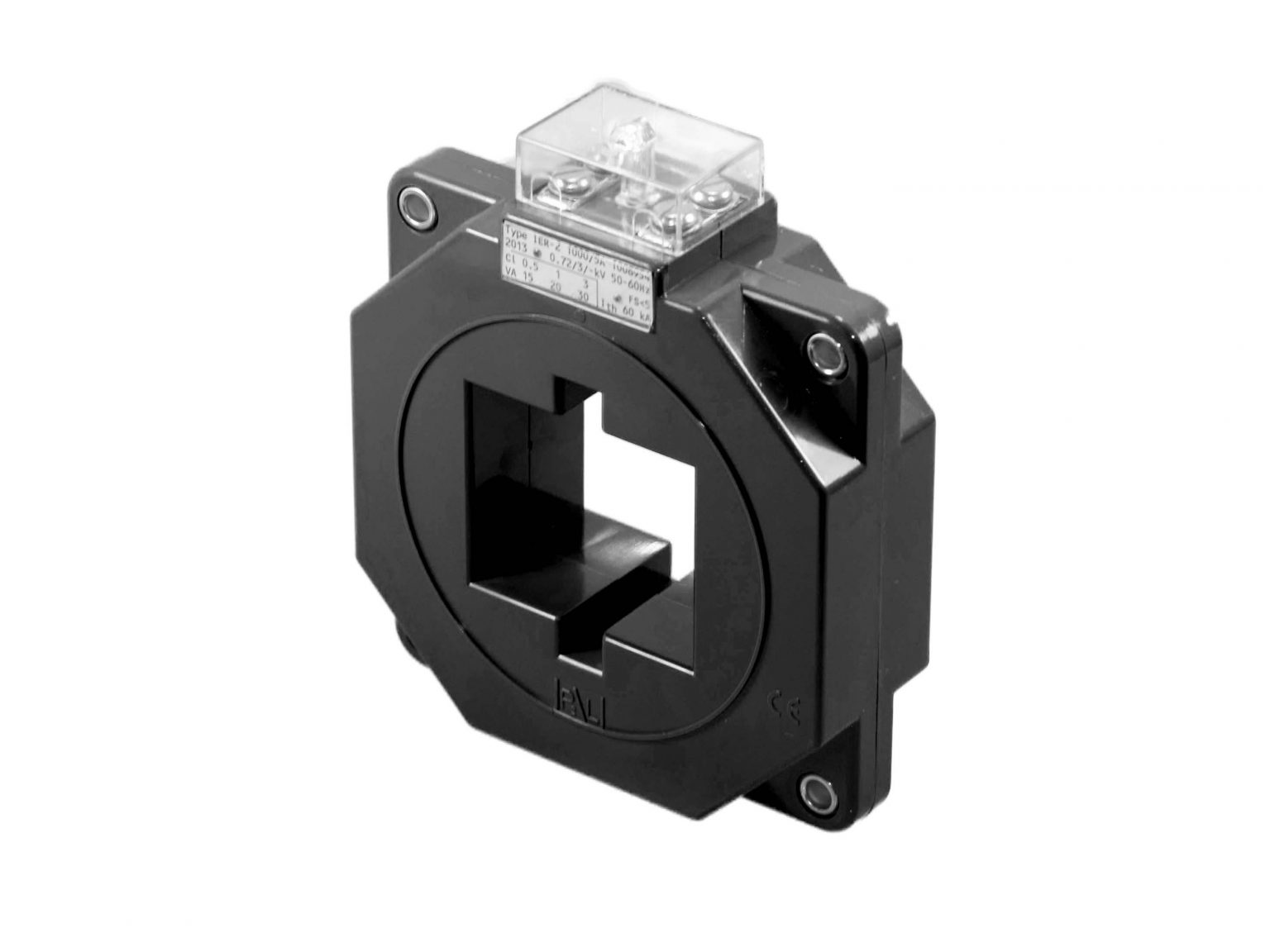

IER-2
Dimension: 155 x 133 x 46 mm
Primary bar: 3 x 60 x 10mm
Range: 250 … 2000A
IER-3
Dimension: 155 x 133 x 46 mm
Primary bar: 2 x 80 x 10mm
Range: 250 … 2000A
IER-4
Dimension: 155 x 133 x 46 mm
Primary bar: 2 x 100 x 10mm
Range: 250 … 2000A
IRP
Dimension: 165 x 120 x 59 mm
Primary bar: 100 x 20mm
Range: 750 … 2500A

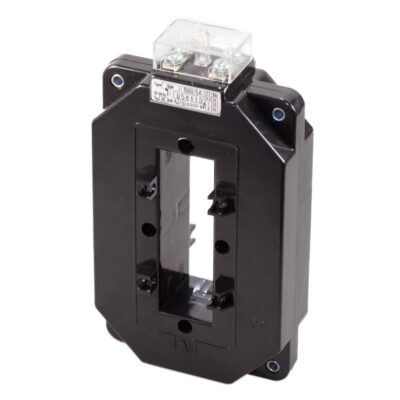

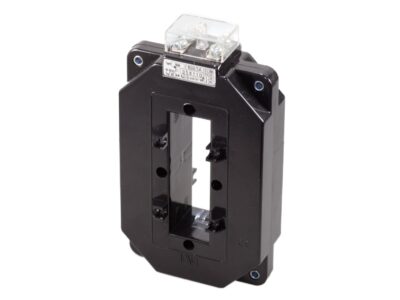

IRM
Dimension: 180 x 120 x 59 mm
Primary bar: 2 x 100 x 20mm
Range: 1500 … 4000A
ICM
Dimension: 182 x 140 x 60 mm
Primary bar: 3 x 100 x 10mm
Range: 750 … 3000A
ICG
Dimension: 228 x 190 x 103 mm
Primary bar: 3 x 130 x 20mm
Range: 3000 … 6000A
IBO
Dimension: 105 x 76 x 38 mm
Form A (5~20A)
Form B (25~150A)
We hope our products meet your needs and expectations. Thank you for your trust and support!
