Multifunction Power Meter
MTECVIET introduces and provides a multifunctional power meter designed to monitor key electrical parameters such as voltage, current, power, frequency, and power factor. Featuring Modbus and digital output for seamless integration into automated systems, this device ensures efficient energy management and reliable performance.
Please take a look at the options below and choose the model that best suits your needs
Touch Screen – Rish Master 3440i. / Rish Master 3440iDL : Class 0.2s
RISH Master 3440i is a class 0.2S as per IEC 62053-22. It measures more than 46 important electrical parameters in 3Ph3/4W & 1PH2W system along with THD & individual harmonics upto 31st. RISH Master 3440iDL has 8MB
Features
- Touch screen graphics LCD. Active Energy – Class 0.2S as per IEC 62053-22
- RTC (Real Time Clock) (RM440iDL). Relay Output (Optional)
- Optional Analog Outputs ( 2 Outputs)
- Data logging (RM440iDL). Sag, Swell and Over Current (RM440iDL)
- Direct remote access(Optional). Energy measurement
- Programmable Energy format & Energy rollover count
- Auto Energy Ranging Count on Display. THD and Individual Harmonics measurement
- Onsite selection of Auto scroll / Fixed Screen
- Phasor Diagram. Phase Sequence indication. Waveform. Parameter Screen recall
- User selectable CT and PT secondary. User Assignable Registers for MODBUS
- Compliance to International Safety standards IEC 61010-1- 2010. IEC60529. IEC 61326.

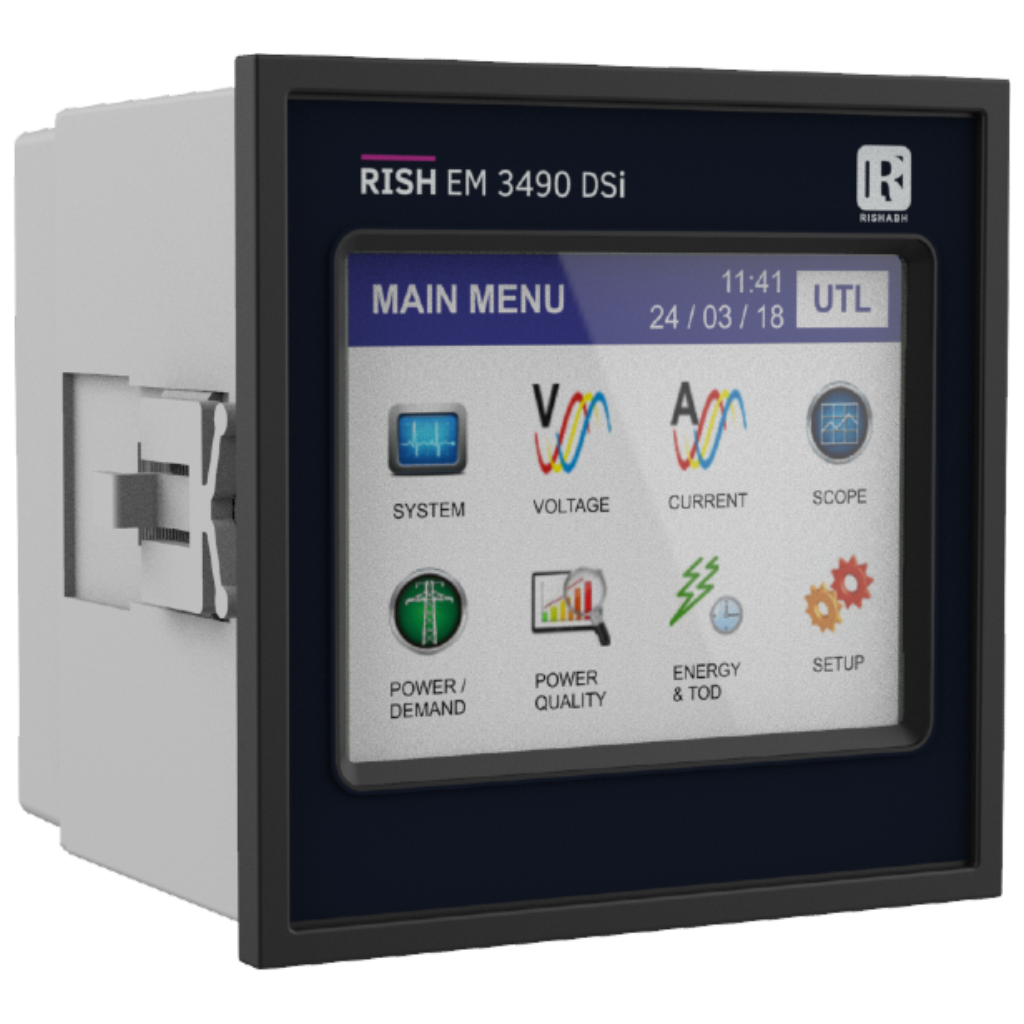

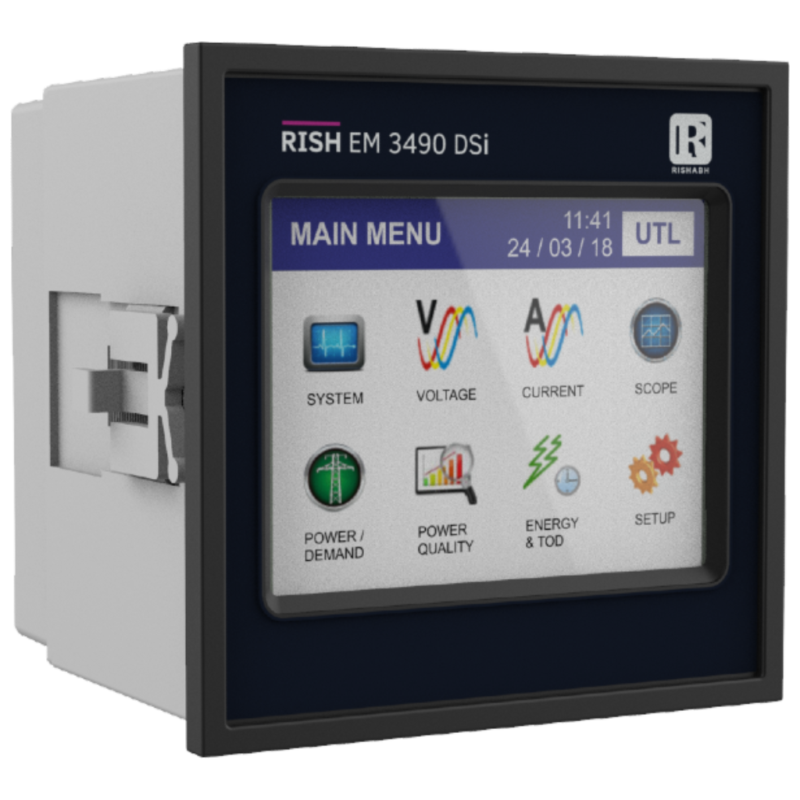

Touch Screen – Rish EM 3490DSi
RISH EM 3490 DSi Is specifically designed for Dual Source Energy Metering which measures important electrical parameters of Utility (in normal mode) & Generators (in Power back up mode) both in Three phase and Single phase Network
Features
- Dual Source Energy Measurements. Direct Cost calculations
- Power Quality Measurement. Graphical Analysis
- Energy class 0.5S as per IEC 62053
- Onsite programmable for user desired application. Run Hour, ON Hour, Number of Interruptions
- Old Register. Time Of DAY (TOD / TOU). Event Logging
- ACCL(Auto Connect Current Limit). Custom colour setting. Phase sequence detection
- Direct remote access via MODBUS. Optional Pulse Relay Output
- Compliance to International Safety standards IEC 61010-1-2010. IEC 61326.

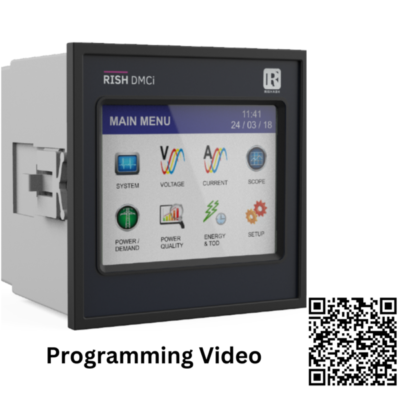

Touch Screen – Rish DMCi
RISH DMCi is a smart Demand Monitor and Controller which is specifically designed for industries to keep a check on their maximum demand by controlling Active, Reactive, Apparent or Current demand within the allowed Limits which helps to save Money on Utility bills for Industries
Features
- Demand Measurement and Control. Control Outputs
- Measures & Monitors more than 80 parameters. Old Register
- True RMS measurement. Power Quality Measurement
- Real Time Clock (RTC). Run Hour, ON Hour, Number of Interruptions
- Graphical Analysis. Energy 0.5S as per IEC 62053
- Time Of DAY (TOD / TOU). Direct remote access via MODBUS
- Custom colour setting. Onsite programmable for user desired application
- compliance to International Safety standard IEC 61010-1-2010; 61326

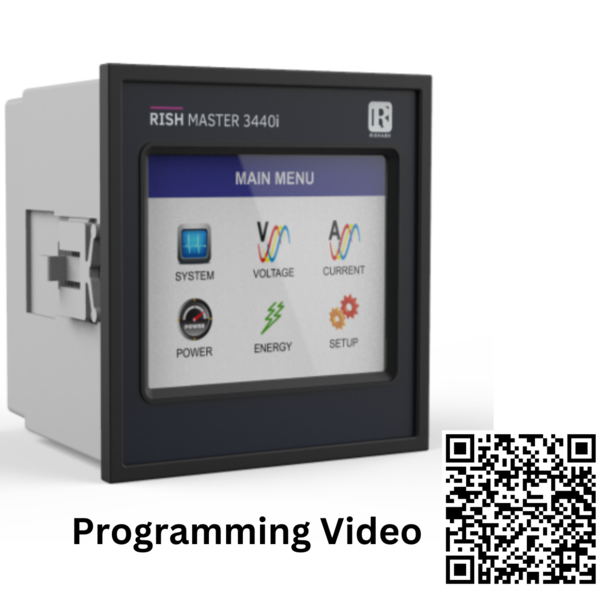

Touch Screen – Rish Master 3440i
Touch Screen – RISH Master 3440i is powerful compact monitoring devices for accurate and reliable measurement of important electrical parameters in 3 phase and single phase Network & replaces the multiple analog panel meters.
Features
- User selectable CT/PT Secondary, network.
- Onsite selection of Auto scroll / Fixed Screen. Phase reversal indication
- Energy measurement (Import and Export). True RMS measurement
- User selectable Low Current suppression (below 30 mA). Min Max storage of parameters possible
- Number of parameters measured: more than 46. Parameter Screen recall
- Phasor Diagram. Wave Form. Total Harmonic Distortion (THD). Energy Count storage
- Hour Run, ON Hour, Number of Interruptions
- Optional MODBUS (RS485), Pulse Output ( 2 Relay output / Limit switch )
- Ethernet Interface (Modbus TCP/IP Protocol)
- Compliance to International Safety standard IEC 61010-1-2010; 61326
We hope our products meet your needs and expectations. Thank you for your trust and support!
