Multifunction Power Meter
MTECVIET introduces and provides a multifunctional power meter designed to monitor key electrical parameters such as voltage, current, power, frequency, and power factor. Featuring Modbus and digital output for seamless integration into automated systems, this device ensures efficient energy management and reliable performance.
Please take a look at the options below and choose the model that best suits your needs

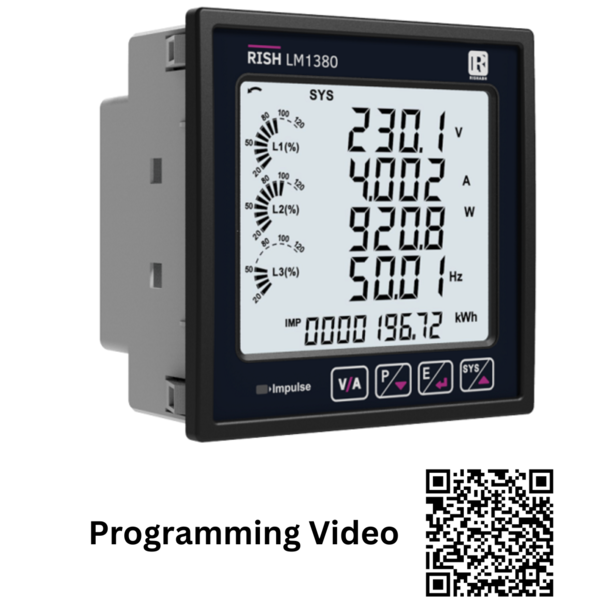

Rish LM1380
RISH LM1380 measures important electrical parameters in 3 phase 4 wire, 3 phase 3 wire and 1 phase 2 wire Network. The instrument has 2 optional digital outputs and 4 optional digital inputs.
Features
- Compliance of IEC 61557-12. Energy Measurement as per IEC 62053-22 / 23
- Individual Phase wise energy measurement. On-site fully programmability
- 4 Digital Inputs – Monitoring Status / Pulse counter / Tariff
- Load Health Monitoring OV,UV,OC,UF,Unb. V/I, PF, PR
- %THD and individual Harmonics Measurement ( upto 63rd Harmonics)
- Unbalance Voltage & Current, Displacement PF
- Dual Communication port – (RS 485 + Ethernet)
- Inbuilt Data logging with RTC
Rish LM 1340
RISH LM1340 measures important electrical parameters in 3 phase 4 wire, 3 phase 3 wire, and 1 phase 2 wire Network. The instrument has two optional digital outputs. This instrument also has two optional digital inputs for monitoring the external contact status, pulse counting, and tariff.
Features
- Compliance of IEC 61557-12
- Energy Measurement as per IEC 62053-22 / 23
- Individual Phase wise energy measurement
- Digital Inputs – Monitoring Status / Pulse counter / Tariff
- On-site fully programmability
- Load Health Monitoring OV, UV, OC, UF, Unb. V/I, PF, PR
- %THD and individual Harmonics Measurement ( upto 31stHarmonics)
- Unbalance Voltage & Current, Displacement PF(on Modbus)

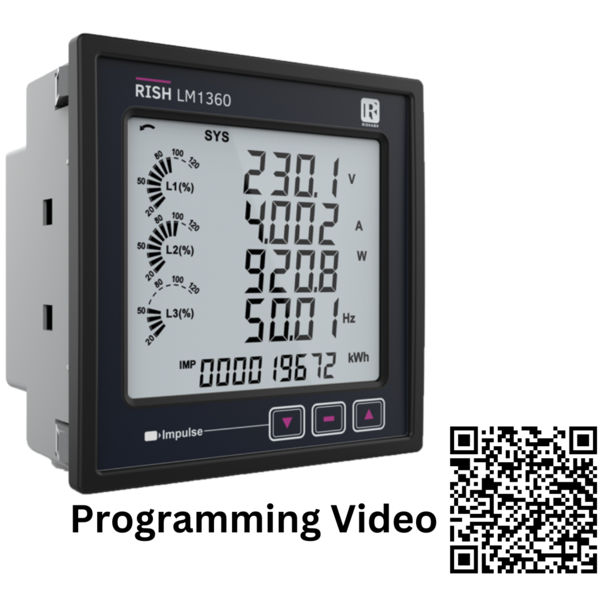

Rish LM 1360 -Load Manager
RISH LM1360 measures important electrical parameters in 3P4W,3P3W & 1P2W like Active / Reactive / Apparent energy, power and all basic parameter. The instrument has two optional outputs. It can be configured as pulse output for energy measurement, limit output , timer function and RTC relay.
Features
- Accuracy class 0.2S and 0.5 as per IEC 62053-22
- THD and Individual Harmonics Measurement upto 31st
- USB Interface with RTC(Real Time Clock). Event logging for daily, monthly and yearly analysis
- Load Profile Analysis with 8 Mb In built memory. Big LCD display with Back-lit
- On-site Fully programmable CT/PT rations
- Compliance to International Safety standards IEC 61010
- Limit (Alarm) or Pulse or RTC relay or Timer Relay Output (optional). Direct remote access (Optional)
Rish LM 1360 -Load Manager (RJ12)
RISH LM1360 measures important electrical parameters in 3ph4W,3ph3W & 1ph2W Network. It measures electrical parameters like energy, power & all basic parameter. The instrument has 2 optional o/p. It can be configured as pulse o/p for energy measurement, limit o/p, timer function & RTC relay.
Features
- Accuracy class 0.2S and 0.5 as per IEC 62053-22
- THD and Individual Harmonics Measurement upto 31st
- USB Interface with RTC(Real Time Clock). Event logging for daily, monthly and yearly analysis
- Load Profile Analysis with 8 Mb In built memory. Big LCD display with Back-lit
- On-site Fully programmable CT/PT rations
- Compliance to International Safety standards IEC 61010
- Limit (Alarm) or Pulse or RTC relay or Timer Relay Output (optional). Direct remote access (Optional)

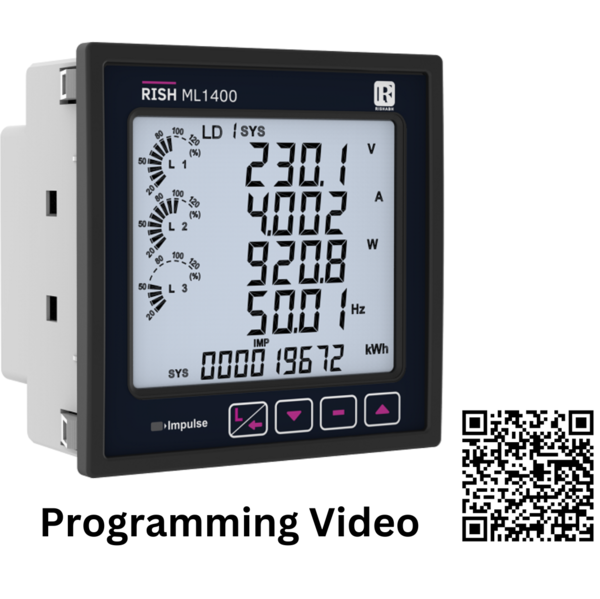

RISH ML 1400 / ML 1410 (MultiLoad Monitor)
RISH ML 14xx measures electrical parameters in 3 phase 4 wire, 3 phase 3 wire and 1 phase 2 wire Network. Parameters at a glance for 12 single phase loads or 4 three phase load option, it has 4 relay outputs for Limit/Pulse/RCM/3Phase Load Health Monitoring/Tariff/RTC/Timer tripping or alarms.
Features
- Multiple Circuit Monitoring. Plug and Play. Current transformer. Direct remote access
- Relay Output (optional)
- THD and Individual Harmonics Measurement. RTC (Real Time Clock)
- Easy & Cost Effective Installations. Prepaid Tariff based tripping
- Residual Current Monitoring. Onsite programmable
- Data logging
- Active Energy accuracy Class 1 as per IEC 62053 – 21 (Optional Class 0.5s, IEC 62053-22). Safety standard – IEC 61010-1- 2010. EMC – IEC 61326

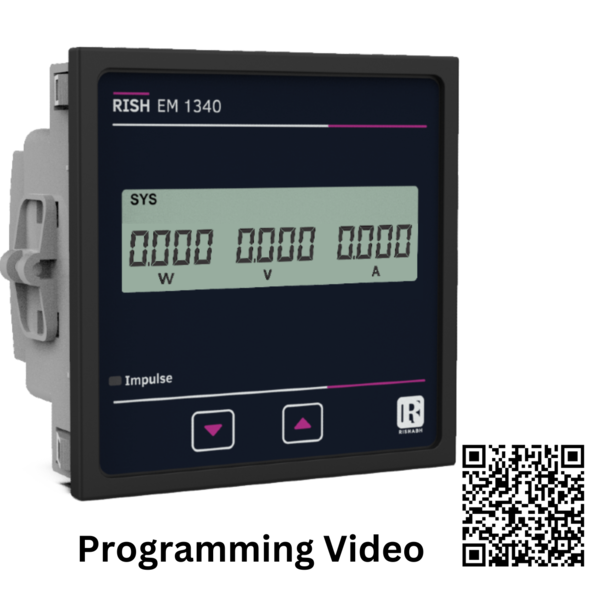

RISH EM 1320/30/40
Rish EM series measures important electrical parameters in 3 phase and single phase Network & replaces the multiple analog panel meters. It measures electrical parameters like Active / Reactive / Apparent energy, power as per models. The instrument has optional output as one pulse output for energy measurement.
Application
- Energy billing
- Electrical load monitoring
- Sub-metering
- Genset, Test Benches and Laboratories

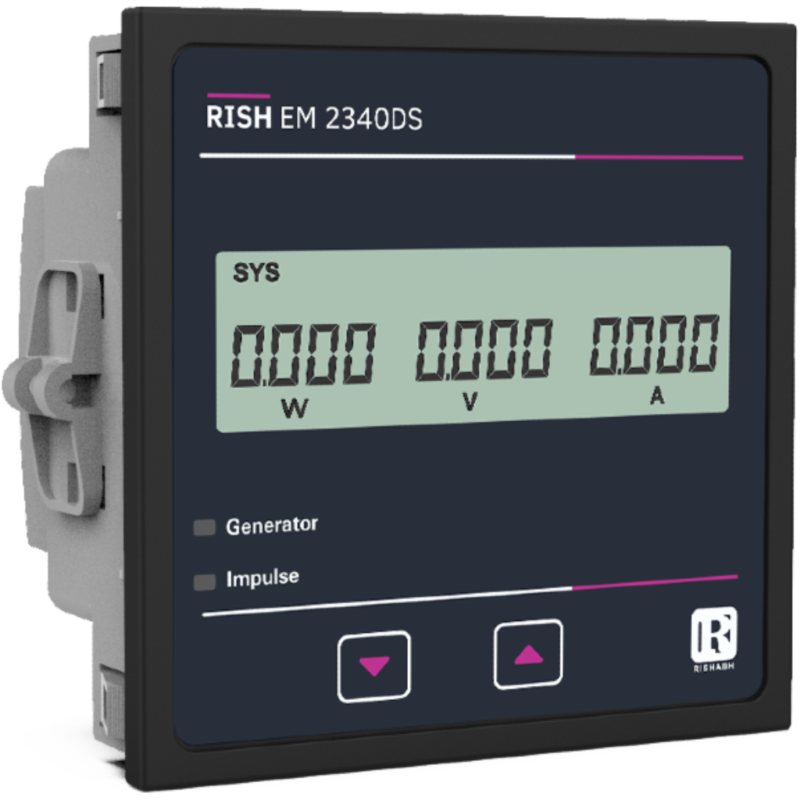

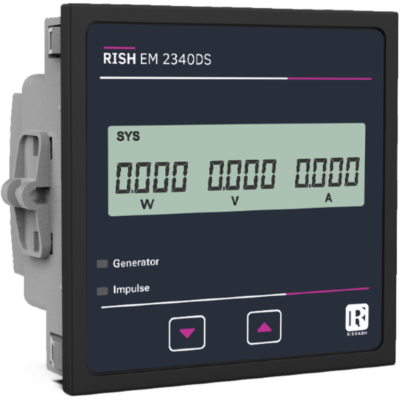

Rish EM 2340DS – Dual Source Energy meter
Rish EM 2340DS is Dual Source Energy Meter which measures important electrical parameters of Utility and Generator in 3 phase and single phase network & replaces the multiple analog panel meters. This energy meter is on-site programmable and can measure more than 65 parameters including Active / Reactive / Apparent energy, Power, Total Harmonic Distortion (THD) measurement among others. It is also available with optional RS485 (MODBUS) and Pulse Output options.
APPLICATIONS
- Energy billing
- Electrical load monitoring
- Sub-metering
- Genset, Test Benches and Laboratories
We hope our products meet your needs and expectations. Thank you for your trust and support!
