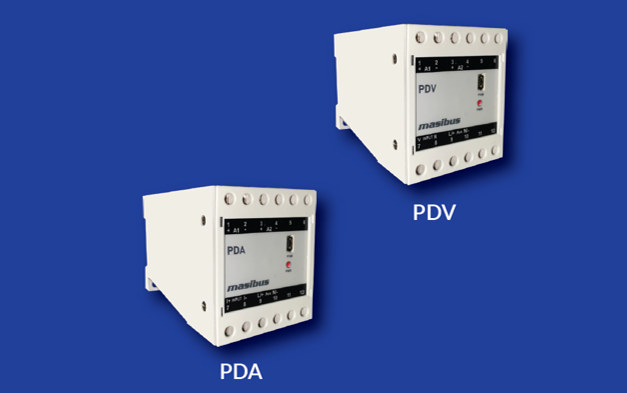

MTECVIET is an authorized distributor of the Masibus PDA / PDV series – precision devices designed to measure and convert AC current or voltage inputs into load-independent DC current or voltage output signals. The output signal is directly proportional to the root mean square (RMS) value of the input current or voltage.
It is equipped with two load-independent, galvanically-isolated analogue outputs that can be configured for different input range and output curves.
AC transducer offers an economical and accurate means of current & voltage measurement on systems where transducers are calibrated to true RMS measurement. AC transducers are having its application to interface with RTUs.
Masibus make transducers are also available with dual output option. It provides accuracy class 0.2 with up to 3 KV isolation. All transducers performs with exceptional accuracy, repeatability and reliability. In addition to being most accurate, our transducers are equally preferred by OEMs/ end users to other makes for their excellent stability over a long period of operation. This world class technology now comes to you at a very competitive price.
Features:
- High accuracy class 0.2
- Confirms to IEC 60688
- True RMS measurement
- Long range, site-configurable inputs & outputs
- Onsite selectable output type (DC current / DC voltage)
- Load-independent accuracy on all outputs
- Available in single or dual output type
- Programming port for easy configuration
- Fast response
- Excellent long-term stability
- Good isolation & impulse resistance
- Transient protected
- DIN-Rail mounting
Application:
- Generating/transmission distribution stations
- Building management
- Load dispatch center
- Power equipment’s OEMs
- HT/LT panels
- Substation automation
- SCADA
- Local and central monitoring systems
Industries:
- Power Distribution industries
- Cement Industries
- Chemical Industries
- Metal Industries
- Paper Industries
- Sugar Industries
- Ceramics Industries
- Paper and Pulp Industries
- Panel Builders
