Multi-range Power Supply 5–12V DC for Industrial Use

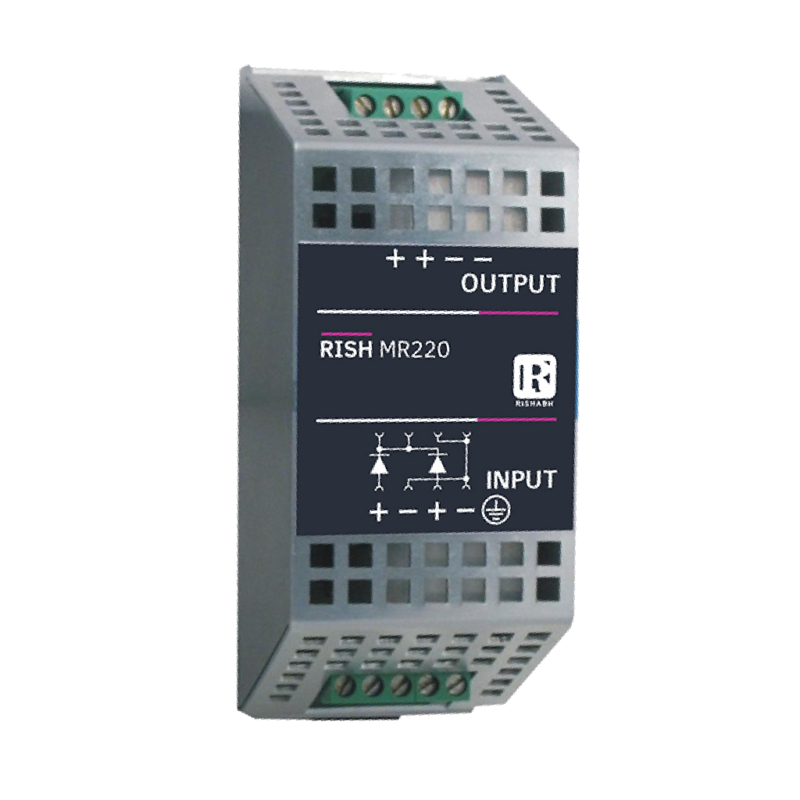

Rish MR220 – Decoupling Module

The Rish MR220 Decoupling Module features integrated diodes designed to support redundant power applications and safely isolate power sources from each other and from the load. Operating within a 10–60 VDC range and supporting up to 25 A, it is DIN rail mountable and offers a highly compact design—ideal for space-constrained industrial environments.

Product Features

• The decoupling module is a dual-input diode with two inputs and one output, designed for a variety of applications. It allows for the creation of redundant systems, isolates power sources from each other and the loads, such as separating sensitive loads from the power bus, designing buffered branches, and blocking reverse power flow.

Applications for Decoupling Module: Redundant Power Systems. Power Source Isolation. Separation of Sensitive Loads. Buffered Branch Design. Reverse Power Protection. Power Management in Solar Systems. UPS Systems

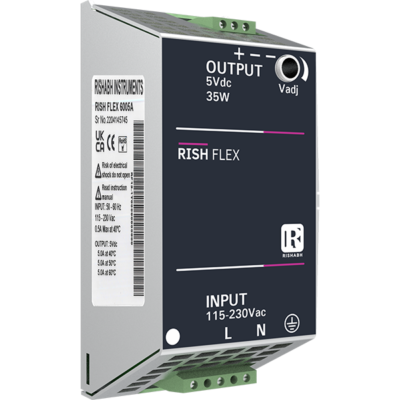

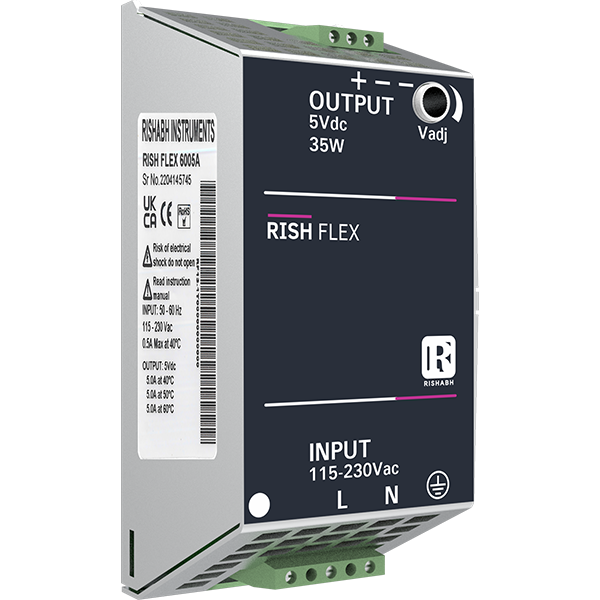

Rish Flex 6005A (1 Phase)

The Rish Flex 6005A is a single-phase power supply with an input range of 115–230VAC and a 5VDC output of 35W. It features an adjustable output voltage range of 4.75–5.25VDC and delivers high efficiency of ≥82%. With its compact dimensions (50 x 120 x 50mm) and DIN rail mountable design, it is perfect for space-constrained industrial applications.

Features

• Input: single-phase: 115–230 VAC
• Output: 5 VDC, 50°C
• Efficiency up to 82%. Strong overload without switch-off
• Flexible Power continuity: up to 35 W
• DIN Rail Mountable. Extremely small size
• 3 Year warranty

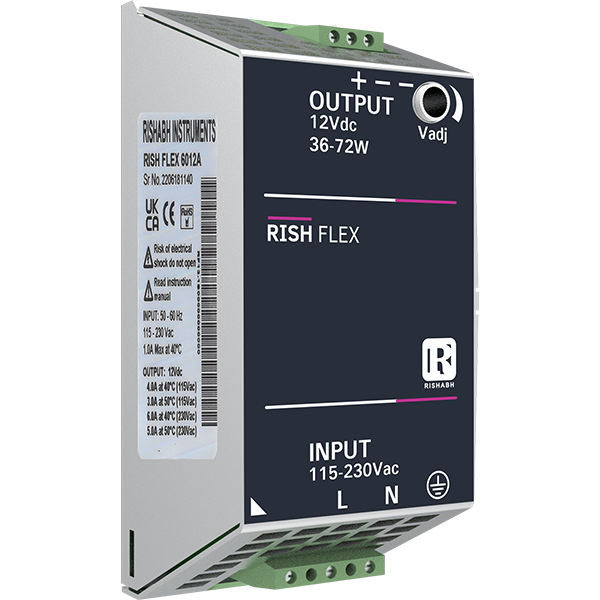

Rish Flex 6012A (1 Phase)

Single-phase power supply with wide input range (115–230VAC) and adjustable 12VDC output (10–15.5VDC), delivering 36W to 72W. Offers high efficiency (≥88%) in a compact form factor (50 x 120 x 50 mm), ideal for space-constrained installations. DIN rail mountable for quick integration into industrial control panels.

Features

• Input: single-phase: 115–230 VAC. Output: 12 VDC, 50°C
• Efficiency up to 88%. Strong overload without switch-off
• Flexible Power continuity: from 36 to 72 W
• DIN Rail Mountable. Extremely small size. 3 Year warranty

Key Features

• Power Boost: Delivers extra power for demanding loads like motors and solenoids without needing oversized units.

• Short-Circuit Protection: Maintains high current with low voltage during faults—supports up to 3× rated current at 60°C for reliable operation with transient loads.

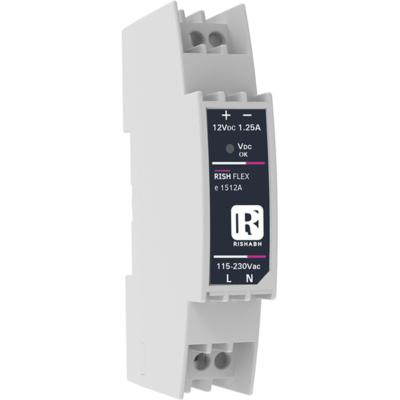

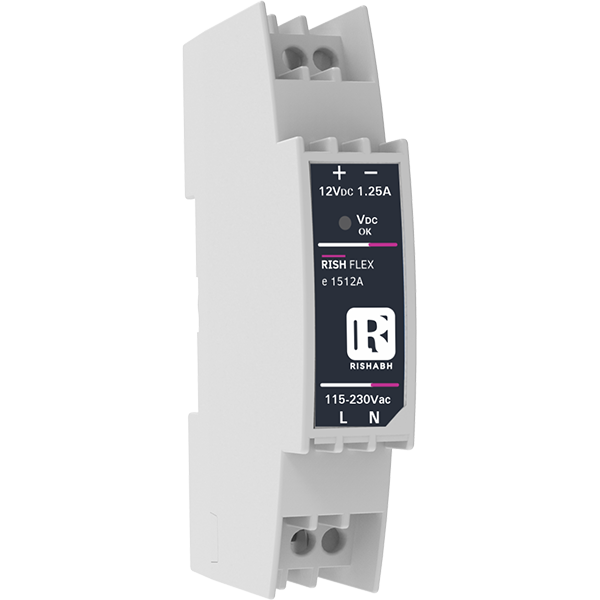

Rish Flex – e 15xxA

1 Phase, Universal Input Range 90-264 VAC, 124-370 VDC, High Efficiency ≥ 87% & extremely compact (W-H-D) 18X90X62mm & DIN Rail Mountable.

Features

• Input: single-phase: 85-264 VAC, 124-370 VDC
• Output: 15/12 Vdc +/- 3% (1A)
• Efficiency greater than 87%
• Strong withstand voltage
• DIN Rail Mountable
• Extremely small size
• 3 Year warranty

Rish Flex 9012A (1 Phase)

1 Phase, 115-230VAC I/P, 12VDC 95 to 120 W O/P, Adjustable O/P voltage range 10–14 VDC. High efficiency ≥91% & compact size (W-H-D) 55x110x105 mm & DIN Rail Mountable

Features

• Input: single-phase: 115–230 VAC
• Output: 12 VDC, 60°C
• Flexible Power continuity: from 95 to 120 W. Efficiency up to 91%
• Strong overload without switch-off, up to 50%
• DIN Rail Mountable. Extremely small size. 3 Year warranty

• Power Boost: Delivers extra power for demanding loads (motors, solenoid valves, lamps, etc.) without needing an oversized power supply.

• Short-Circuit Protection: Hiccup Mode (default): Automatically interrupts and retries every 2 seconds until the fault clears. Continuous Mode: Maintains high current at near-zero voltage—ideal for high inrush loads like motors and PLCs. Manual Reset: Requires power-off reset by an operator—suitable for safety-critical applications. “Power Good” Relay: Continuously monitors output voltage—especially useful in redundant systems.

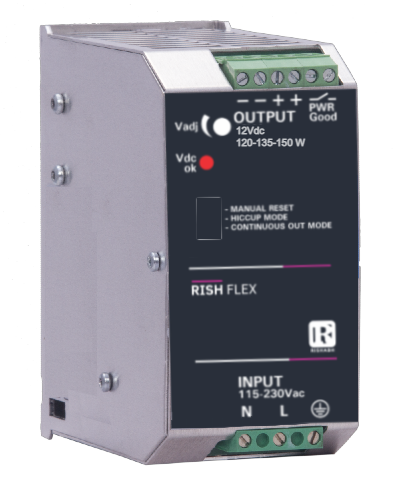

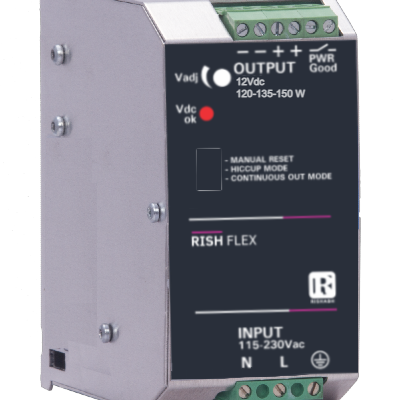

Rish Flex 15012A (1 Phase)

1 Phase, 115-230VAC I/P, 12VDC 120 to 150 W O/P, Adjustable O/P voltage range 10–14 VDC. High efficiency ≥ 91% & compact size (W-H-D) 55x110x105 mm & DIN Rail Mountable.

Features

• Input: single-phase: 115 – 230 VAC. Output: 12 Vdc 60°C
• Flexible Power continuity : from 120 to 150 W. Efficiency up to 91%
• Strong overload without switch-off, up to 50%
• DIN Rail Mountable. Extremely small size 3 Year warranty

• Power Boost: Delivers extra power for demanding loads (motors, solenoid valves, lamps, etc.) without needing an oversized power supply.

• Short-Circuit Protection: Hiccup Mode (default): Automatically interrupts and retries every 2 seconds until the fault clears. Continuous Mode: Maintains high current at near-zero voltage—ideal for high inrush loads like motors and PLCs. Manual Reset: Requires power-off reset by an operator—suitable for safety-critical applications. “Power Good” Relay: Continuously monitors output voltage—especially useful in redundant systems.

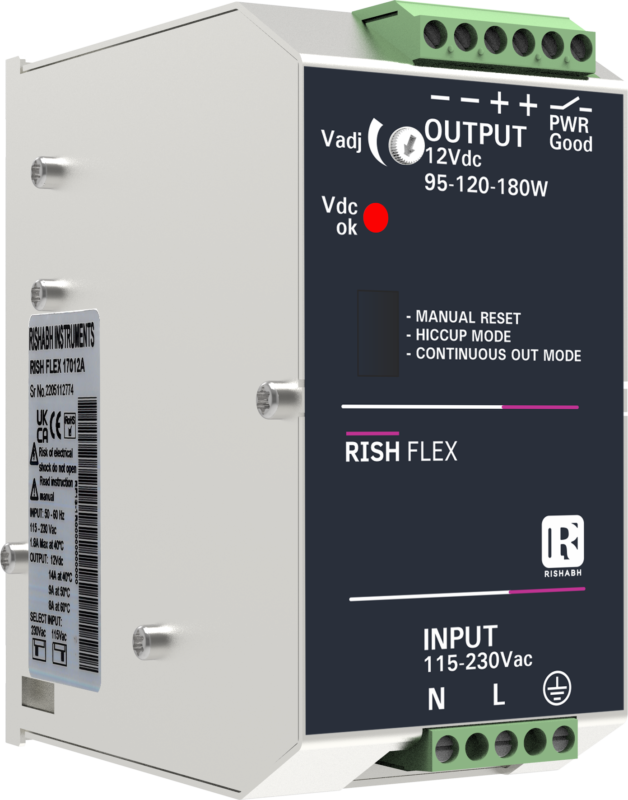

Rish Flex 17012A (1 Phase)

1 Phase, 115-230VAC I/P, 12VDC 120 to 180 W O/P, adjustable O/P voltage range 10-4 VDC. High efficiency ≥91% & compact size (W-H-D) 55 x 110 x 105 mm & DIN Rail Mountable

Features

• Input: single-phase: 115 – 230 VAC. Output: 12 Vdc 60°C
• Flexible Power continuity : from 120 to 180 W. Efficiency up to 91%
• Strong overload without switch-off, up to 50%
• DIN Rail Mountable. Extremely small size. 3 Year warranty

• Power Boost: Delivers extra power for demanding loads (motors, solenoid valves, lamps, etc.) without needing an oversized power supply.

• Short-Circuit Protection: Hiccup Mode (default): Automatically interrupts and retries every 2 seconds until the fault clears. Continuous Mode: Maintains high current at near-zero voltage—ideal for high inrush loads like motors and PLCs. Manual Reset: Requires power-off reset by an operator—suitable for safety-critical applications. “Power Good” Relay: Continuously monitors output voltage—especially useful in redundant systems.

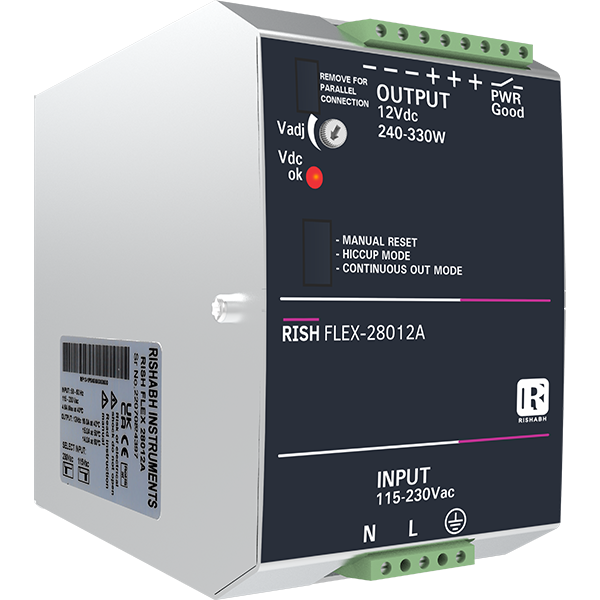

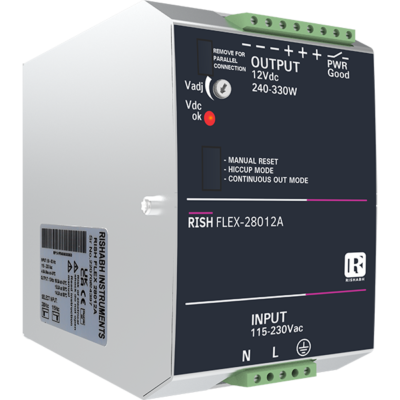

Rish Flex 28012A (1 Phase)

1 Phase, 115-230VAC I/P, 12VDC 240 to 336 W O/P, adjustable O/P voltage range 10–14 VDC. High efficiency ≥91% & compact size (W-H-D) 72 x 115 x 135 mm & DIN Rail Mountable.

Features

• Input: single-phase: 115 – 230 VAC. Output: 12 Vdc 60°C
• Flexible Power continuity : from 240 to 336 W. Efficiency up to 91%
• Strong overload without switch-off, up to 50%
• DIN Rail Mountable. Extremely small size. 3 Year warranty

• Power Boost: Delivers extra power for demanding loads (motors, solenoid valves, lamps, etc.) without needing an oversized power supply.

• Short-Circuit Protection: Hiccup Mode (default): Automatically interrupts and retries every 2 seconds until the fault clears. Continuous Mode: Maintains high current at near-zero voltage—ideal for high inrush loads like motors and PLCs. Manual Reset: Requires power-off reset by an operator—suitable for safety-critical applications. “Power Good” Relay: Continuously monitors output voltage—especially useful in redundant systems.
