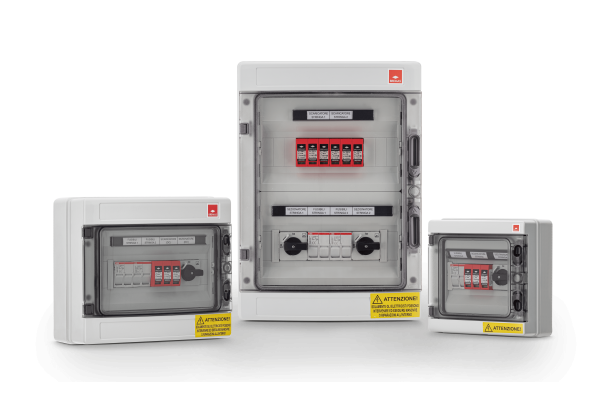

Pre-wired string boxes with nominal voltage of 600 Vdc and 1000 Vdc are available, with overvoltage protection via type 2 Surge Protective Devices (SPD), overcurrent protection via fuse holders base (fuses included), and isolation via disconnect switches specific for DC-PV1 and DC-PV2 use categories (according to IEC EN 60947-3).
Installation both indoors and outdoors, thanks to enclosures made of insulating material with IP65 protection degree.
Kindly refer to the options below and choose the ones that meet your installation needs:
DC STRING BOXES
MBDC060L0101F20
| Serie | DC String boxes |
| String Configuration | 1 string |
| Rated insulation voltage | 600 Vdc |
| Code | MBDC060L0101F20 |
DC STRING BOXES
MBDC060L0201F20
| Serie | DC String boxes |
| String Configuration | 2 string |
| Rated insulation voltage | 600 Vdc |
| Code | MBDC060L0201F20 |
DC STRING BOXES
MBDC060L0202F20
| Serie | DC String boxes |
| String Configuration | 2 string |
| Rated insulation voltage | 600 Vdc |
| Code | MBDC060L0202F20 |
DC STRING BOXES
MBDC100L0101F20
| Serie | DC String boxes |
| String Configuration | 1 string |
| Rated insulation voltage | 1000 Vdc |
| Code | MBDC100L0101F20 |
DC STRING BOXES
MBDC100L0201F20
| Serie | DC String boxes |
| String Configuration | 2 string |
| Rated insulation voltage | 1000 Vdc |
| Code | MBDC100L0201F20 |
DC STRING BOXES
MBDC100L0202F20
| Serie | DC String boxes |
| String Configuration | 2 string |
| Rated insulation voltage | 1000 Vdc |
| Code | MBDC100L0202F20 |
Pre-wired string boxes with nominal voltage of 600 Vdc and 1000 Vdc are available, with overvoltage protection via type 2 Surge Protective Devices (SPD), overcurrent protection via fuse holders base (fuses included), and isolation via disconnect switches specific for DC-PV1 and DC-PV2 use categories (according to IEC EN 60947-3).
