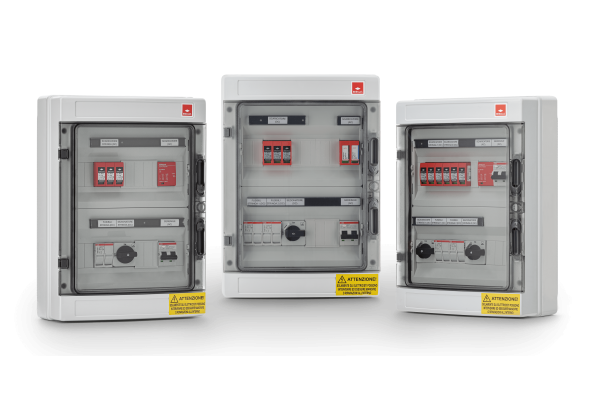

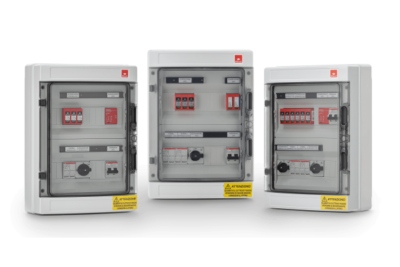

Pre-wired string boxes with nominal voltage of 600 Vdc and 1000 Vdc are available, with overvoltage protection via type 2 Surge Protective Devices (SPD), overcurrent protection via fuse holders base (fuses included), and isolation via disconnect switches specific for DC-PV1 and DC-PV2 use categories (according to IEC EN 60947-3).
Installation both indoors and outdoors, thanks to enclosures made of insulating material with IP65 protection degree.
Kindly refer to the options below and choose the ones that meet your installation needs:
AC-DC STRING BOXES
MBXC060L0101F20M16
| Serie | AC-DC String boxes |
| String Configuration | 1 string |
| Phase | Single phase |
| Rated insulation voltage | 600 Vdc |
| Thermal rated current | 16A |
| Code | MBXC060L0101F20M16 |
AC-DC STRING BOXES
MBXC060L0201F20M25
| Serie | AC-DC String boxes |
| String Configuration | 2 parallel strings |
| Phase | Single phase |
| Rated insulation voltage | 600 Vdc |
| Thermal rated current | 25A |
| Code | MBXC060L0201F20M25 |
AC-DC STRING BOXES
MBXC060L0202F20M32
| Serie | AC-DC String boxes |
| String Configuration | 2 parallel strings |
| Phase | Single phase |
| Rated insulation voltage | 600 Vdc |
| Thermal rated current | 32A |
| Code | MBXC060L0202F20M32 |
AC-DC STRING BOXES
MBXC100L0101F20M16
| Serie | AC-DC String boxes |
| String Configuration | 1 string |
| Phase | Single phase |
| Rated insulation voltage | 1000 Vdc |
| Thermal rated current | 16A |
| Code | MBXC100L0101F20M16 |
AC-DC STRING BOXES
MBXC100L0201F20M25
| Serie | AC-DC String boxes |
| String Configuration | 2 paralell strings |
| Phase | Single phase |
| Rated insulation voltage | 1000 Vdc |
| Thermal rated current | 25A |
| Code | MBXC100L0201F20M25 |
AC-DC STRING BOXES
MBXC100L0202F20M32
| Serie | AC-DC String boxes |
| String Configuration | 2 single strings |
| Phase | Single phase |
| Rated insulation voltage | 1000 Vdc |
| Thermal rated current | 32A |
| Code | MBXC100L0202F20M32 |
