RFID Reader for Passive Wireless Temperature Sensors
RFID Reader
PQS-RD-01
Power Supply:
100 ~ 240 Vac 50 / 60Hz 20W
100 ~ 240 Vdc 20W
Wide Range Input
Antenna Ports: 4 ports
Comm. Interface: 1 Set RS485/Modbus RTU
Dimensions: 80 x 115 x 45 mm
Installation Type: Rack Mount
Operation Temperature: -20 to 70 ℃
Humidity Sensor Option: No

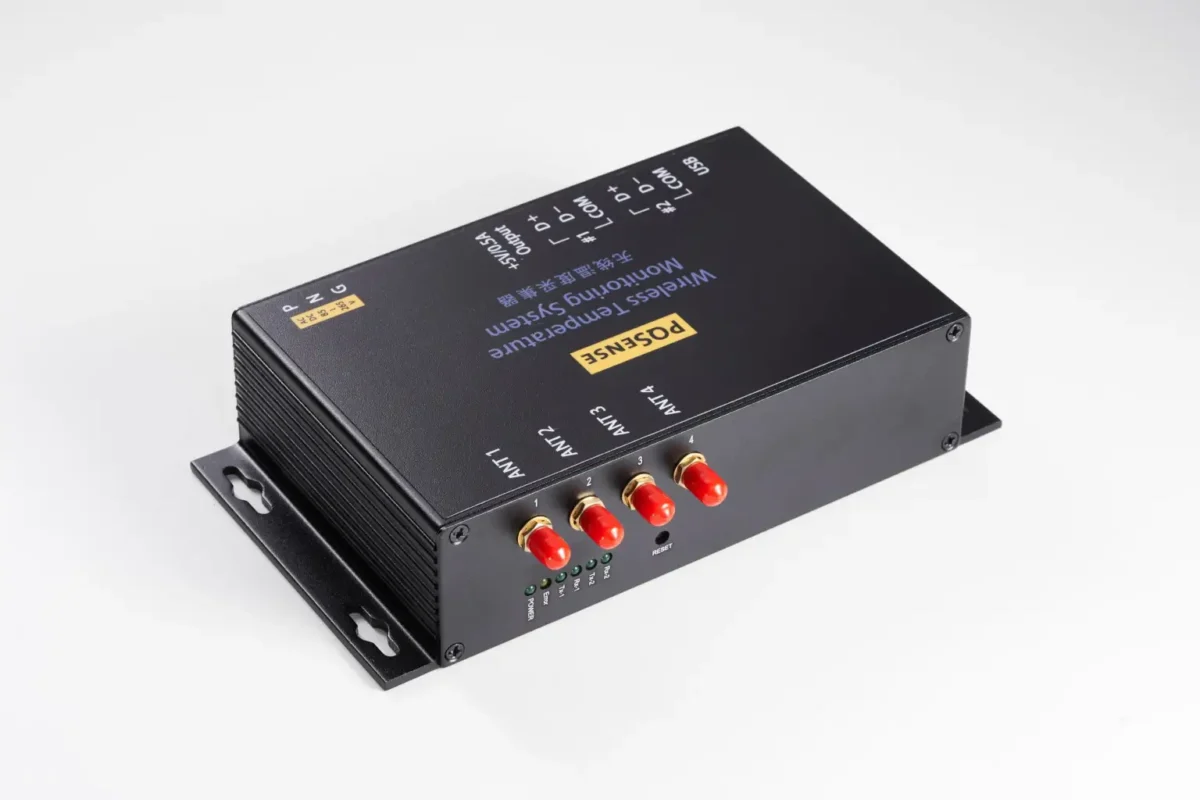

PQS-RD-11/4
Power Supply:
100 ~ 240 Vac 50 / 60Hz 20W
100 ~ 240 Vdc 20W
Wide Range Input
Antenna Ports: 4 ports
Comm. Interface: 2 Set RS485/Modbus RTU
Dimensions: 190 x 100 x 41 mm
Installation Type:
Screw Mount
Rack Mount (Optional)
Operation Temperature: -20 to 70 ℃
Humidity Sensor Option: Yes

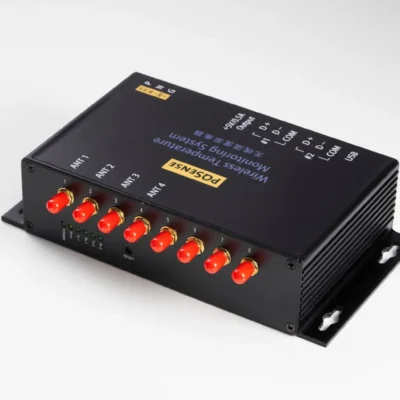

PQS-RD-11/8
Power Supply:
100 ~ 240 Vac 50 / 60Hz 20W
100 ~ 240 Vdc 20W
Wide Range Input
Antenna Ports: 8 ports
Comm. Interface: 2 Set RS485/Modbus RTU
Dimensions: 190 x 100 x 41 mm
Installation Type:
Screw Mount
Rack Mount (Optional)
Operation Temperature: -20 to 70 ℃
Humidity Sensor Option: Yes
| PRODUCT NUMBER | POWER SUPPLY | ANTENNA PORTS | COMM. INTERFACE | DIMENSIONS | INSTALLATION TYPE | OPERATION TEMPERATURE | HUMIDITY SENSOR OPTION |
|---|---|---|---|---|---|---|---|
| PQS-RD-01 | 100 ~ 240 Vac 50 / 60Hz 15W
100 ~ 240 Vdc 15W Wide Range Input |
4 ports | 1 Set
RS485/Modbus RTU |
80 x 115 x 45 mm | Rack Mount | -20 to 70 ℃ | No |
| PQS-RD-11/4 | 100 ~ 240 Vac 50 / 60Hz 15W
100 ~ 240 Vdc 20W Wide Range Input |
4 ports | 2 Sets RS485/Modbus RTU | 190 x 100 x 41 mm | Screw Mount Rack Mount (Optional) | -20 to 70 ℃ | Yes |
| PQS-RD-11/8 | 100 ~ 240 Vac 50 / 60Hz 15W
100 ~ 240 Vdc 20W Wide Range Input |
8 ports | 2 Sets RS485/Modbus RTU | 190 x 100 x 41 mm | Screw Mount Rack Mount (Optional) | -20 to 70 ℃ | Yes |
MTECVIET provides Passive Wireless Temperature Sensors with RFID technology for safe, real-time thermal monitoring of switchgear, transformers, and cable systems.
Ready to make your electrical system smarter and safer? Learn more about our wireless temperature monitoring solutions below or get in touch with us today.!
