Passive Wireless Temperature Sensors
RFID SENSOR

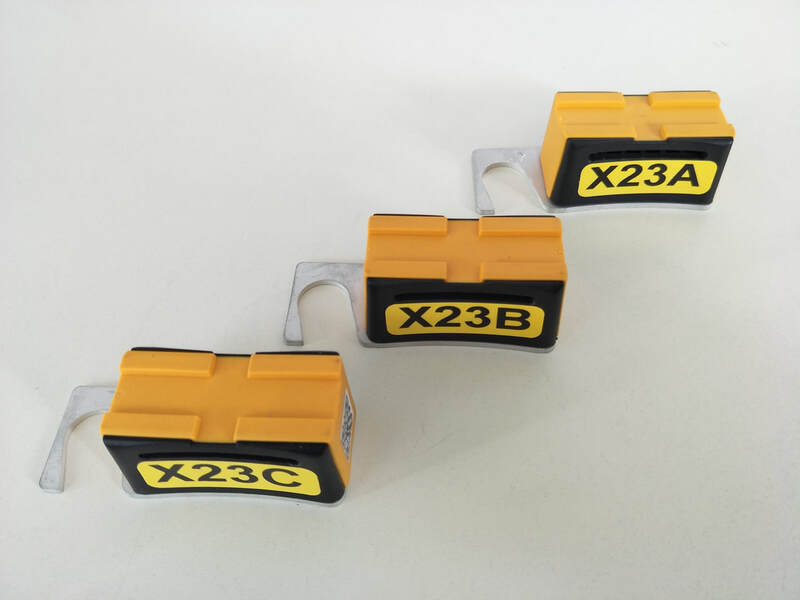

PQS-SR-01
Description: Bolt Mount Sensor
Features: Passive Wireless RFID Temperature Sensor
Accuracy: +/- 2 ℃
Dimension: 69 x 27 x 23 mm
Installation Type: Bolt or Cable tie
Read Range: 2-3 meters
Measure Range: -20 ～ +125 ℃
Applicable Occasions: Busbar
Communication Method: RFID

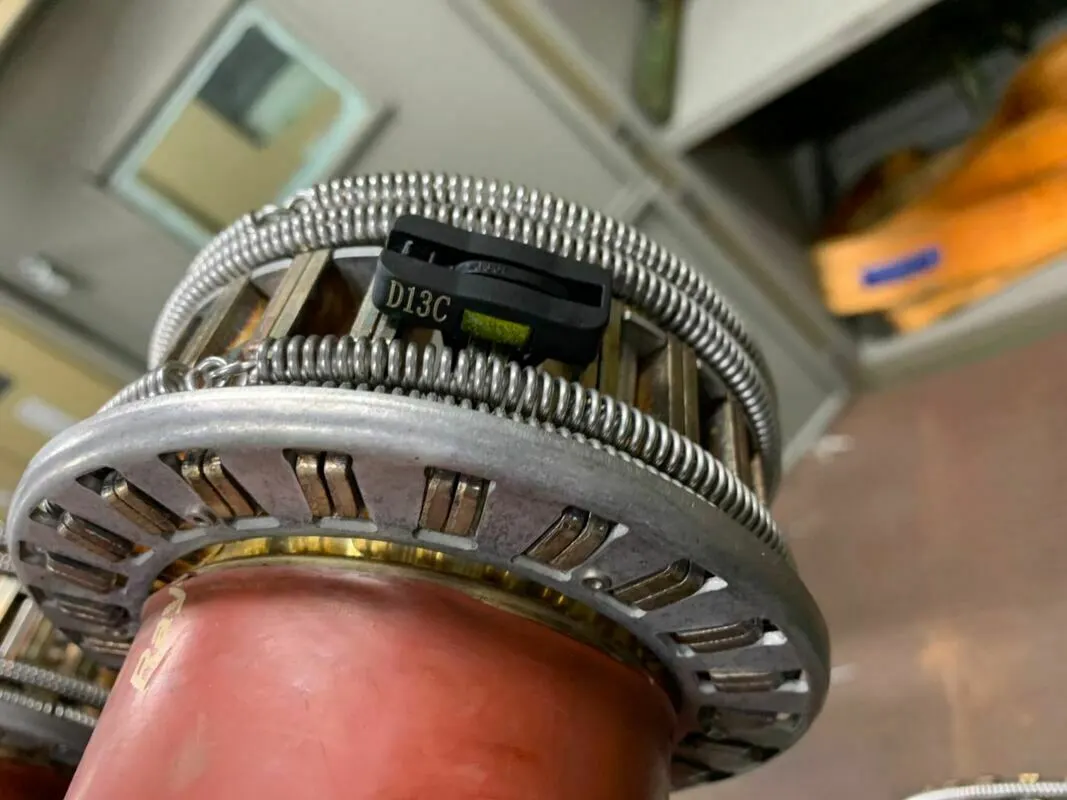

PQS-SR-02
Description: Plum Contact Sensor
Features: Passive Wireless RFID Temperature Sensor
Accuracy: +/- 2 ℃
Dimension: 14 x 9 x 4 mm
Installation Type: Complementing Fixture
Read Range: ~1 meters
Measure Range: -20 ～ +125 ℃
Applicable Occasions: Plum contact
Communication Method: RFID

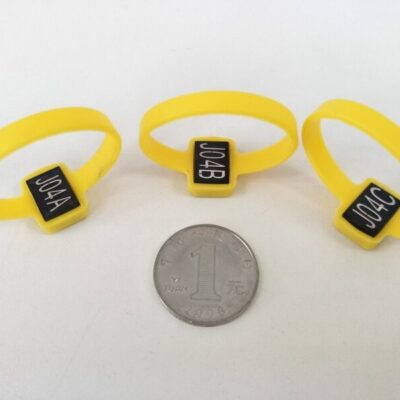

PQS-SR-03
Description: Male Plug Sensor
Features:Passive Wireless RFID Temperature Sensor
Accuracy: +/- 2 ℃
Dimension: 14 x 9 x 4 mm
Installation Type: Silicone Rubber Strap
Read Range: ~1 meters
Measure Range: -20 ～ +125 ℃
Applicable Occasions: Male contact
Communication Method: RFID
PQS-SR-04
Description: Flat-man Sensor
Features: Passive Wireless RFID Temperature Sensor
Accuracy: +/- 2 ℃
Dimension: 47 x 25 x 2 mm
Installation Type: Bolt
Read Range: 2-3 meters
Measure Range: -20 ～ +125 ℃
Applicable Occasions: Metal stud
Communication Method: RFID

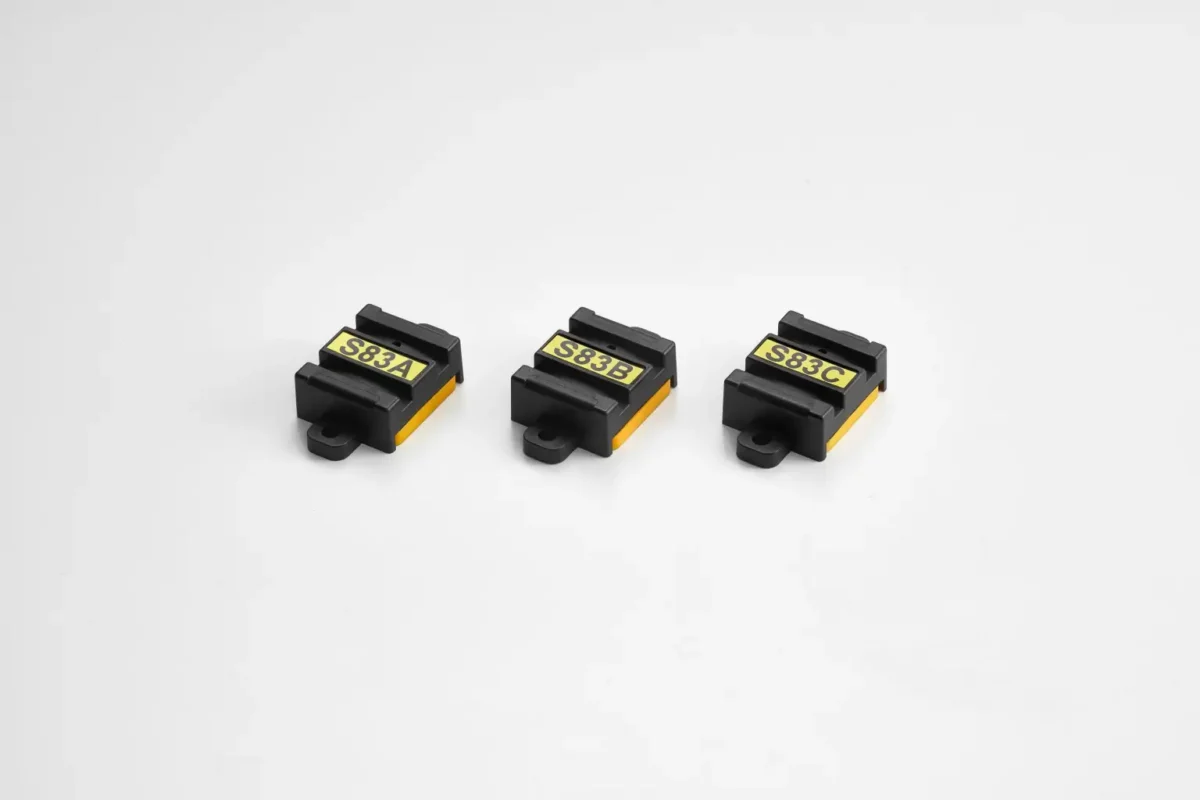

PQS-SR-05
Description: 25 x 25 mm Sensor
Features: Passive Wireless RFID Temperature Sensor
Accuracy: +/- 2 ℃
Dimension: 25 x 25 x 4 mm
Installation Type: Cable tie
Read Range: 1-2 meters
Measure Range: -20 ～ +125 ℃
Applicable Occasions: Busbar
Communication Method: RFID
PQS-SR-11
Description: Nut Sensor
Features: Passive Wireless RFID Temperature Sensor
Accuracy: +/- 2 ℃
Dimension:
．Sensor: 10 x 5 x 3 mm
．Nut: 20 x 23 x 13 mm (M12)
Installation Type: Screw-In
Read Range: 0.8 meters
Measure Range: -20 ～ +125 ℃
Applicable Occasions: RMU cable head
Communication Method: RFID
Silicone Strap
Product Name：Silicone Strap
Type：Fixture for Sensors
Dimensions：
S: 147.5 x 18.5 x 8 mm
M: 273 x 22 x 8 mm
L: 295.5 x 33 x 8 mm
Suitable Sensor Dimensions：
S: 14 x 9 x 4 mm (SR-02,SR-03)
M: 14 x 9 x 4 mm (SR-02,SR-03)
L: 25 x 25 x 4 mm (SR-05)
Installation Type：Strapped on
Max Strapped Diameter：
S: 60 mm M: 110 mm L: 110 mm
Withstand Temperature: -40℃ to
|
PRODUCT NUMBER |
DESCRIPTION | ACCURACY | DIMENSION | INSTALLATION TYPE | READ RANGE | MEASURE RANGE | APPLICABLE OCCASIONS |
|---|---|---|---|---|---|---|---|
| PQS-SR-01 | Bolt Mount Sensor | +/- 2 ℃ | 69 x 27 x 23 mm | Bolt or Cable tie | 2-3 meters |
-20 ～ +125 ℃ |
Busbar |
| PQS-SR-02 | Plum Contact Sensor | +/- 2 ℃ | 14 x 9 x 4 mm | Complementing Fixture | ~1 meters | -20 ～ +125 ℃ | Plum contact |
| PQS-SR-03 | Male Plug Sensor | +/- 2 ℃ | 14 x 9 x 4 mm | Silicone Rubber Strap | ~1 meters | -20 ～ +125 ℃ | Male contact |
|
PQS-SR-04 |
Flat-man Sensor | +/- 2 ℃ | 47 x 25 x 2 mm | Bolt | 2-3 meters | -20 ～ +125 ℃ | Metal stud |
| PQS-SR-05 | 25 x 25 mm Sensor | +/- 2 ℃ | 25 x 25 x 4 mm | Cable tie | 1-2 meters | -20 ～ +125 ℃ | Busbar |
| PQS-SR-11 | Nut Sensor | +/- 2 ℃ |
Sensor: 10 x 5 x 3 mm Nut: 20 x 23 x 13 mm (M12) |
Screw-In | 0.8 meters | -20 ～ +125 ℃ | RMU cable head |
MTECVIET provides Passive Wireless Temperature Sensors with RFID technology for safe, real-time thermal monitoring of switchgear, transformers, and cable systems.
Ready to make your electrical system smarter and safer? Learn more about our wireless temperature monitoring solutions below or get in touch with us today.!
