Thông số kỹ thuật chi tiết
| Mã sản phẩm (Model No.) | Màu sắc (Color) | Định mức điện (Electrical Ratings) | Tiết diện dây dẫn (Wire Range) | Quy cách đóng gói (Packing) |
|---|---|---|---|---|

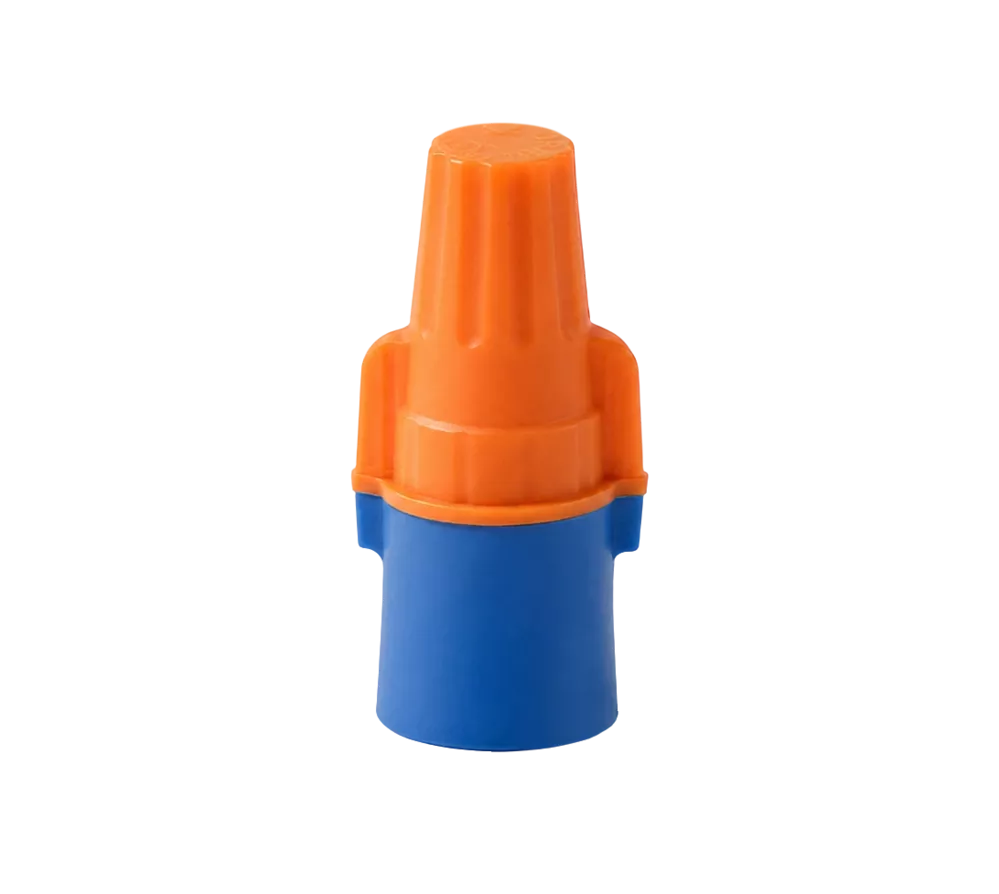

OR/BL |
Orange + Blue | • 600 V Max. • 105°C (221°F) |
• 22-12 AWG, Cu • Max. 3 #12 • Min. 2 #22 |
• 500 Pcs/Bag • 5,000 Pcs/Ctn |
TN/RD |
Tan + Red | • 600V Max. • 105°C (221°F) |
• 22-12 AWG, Cu • Max. 5 #12 • Min. 1 #20 w/ 3 #22 |
• 500 Pcs/Bag • 5,000 Pcs/Ctn |
RD/YW |
Red + Yellow | • 600 V Max. • 105°C (221°F) |
• 22-8 AWG, Cu • Max. 2 #8 / 3 #10 • Min. 2 #18 |
• 500 Pcs/Bag • 5,000 Pcs/Ctn |
BL/GY |
Blue + Gray | • 600 V Max. • 105°C (221°F) |
• 14-6 AWG, Cu • Max. 2 #8 w/ 3 #10 • Min. 1 #10 w/ 1 #14 |
• 100 Pcs/Bag • 1,500 Pcs/Ctn |
Advantages
● Tough thermoplastic, UL 94V-2 flame-retardant shell rated at 105℃ (221℉).
● Zinc plated square-wire spring.
● No pre-twisting required, push stripped conductors into connector and screw on.
● Swept-back wing design provides finger-tip comfort and fit into tight spaces.
● Flexible skirt provides improved protection and fit into tight spaces.
● For use in electrical appliances, lighting and building wiring.
● Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.
● UL 486C Listed and CSA 22.2 No.188 Certified.
