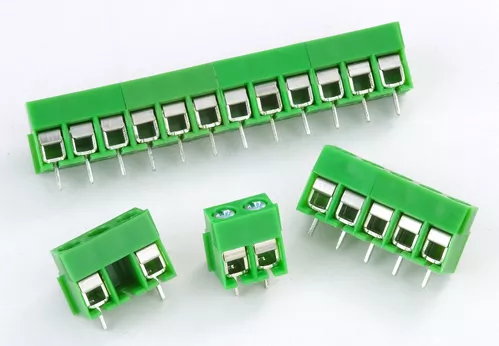

PCB Terminal Blocks

● Polyamide, UL 94V-0 or V-2 flame-retardant housing.

● Tinned brass contacts with square wire entry holes.

● Integrated stainless wire protectors to prevent twisting and breakage of stranded conductors.

● Recessed screws and tubular contacts provide added safety and help prevent short circuits.

● Certified to IEC / EN 60998, GB/T13140 and Recognized to UL 1059.

● Suitable for printed circuit boards in various electronic equipment.

Mã sản phẩm (Model No.)	Màu sắc (Color)	Số cực (Poles)	Bước cực (Pitch)	Định mức (Ratings)	Tiết diện dây dẫn (Wire Range)
PA001	Green	2 – 24	5.0 mm	• 17.5A, 250V, T110°C • 10A, 300V, 75°C / 115°C	• 0.5 – 1.5 mm² (Rigid/Flexible) • 26 – 14 AWG (Sol/Str Cu)
PA002	Green	2 – 24	5.0 mm	• 17.5A, 250V, T110°C (230°F) • 10A, 300V, 75°C (167°F) / 115°C (239°F)	• 0.5 – 1.5 mm² (Rigid/Flexible) • 26 – 14 AWG (Sol/Str Cu)
PA003	Green	2 – 12	7.5 mm	• 24A, 400V, T120°C • 15A, 300V, 75°C / 115°C	• 0.5 – 2.5 mm² (Rigid/Flexible) • 18 – 14 AWG (Sol/Str Cu)
PA007	Green	2 – 12	7.5 mm	• 24A, 400V, T120°C • 15A, 300V, 75°C / 115°C	• 0.5 – 2.5 mm² (Rigid/Flexible) • 18 – 14 AWG (Sol/Str Cu)
