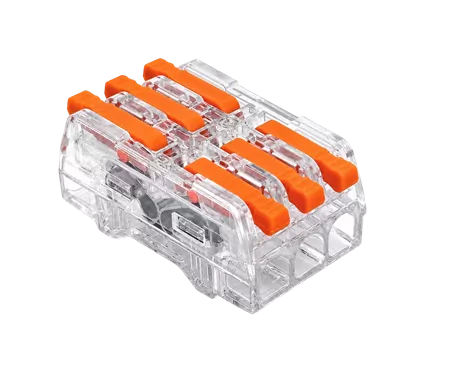

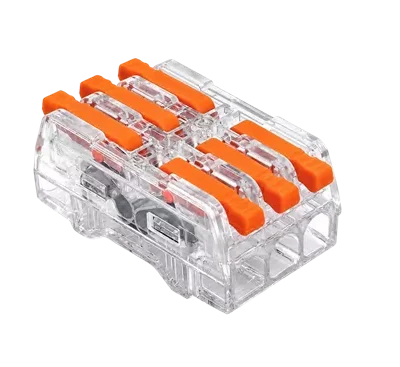

PC663M Lever In-Line Connectos

Model : PC662M

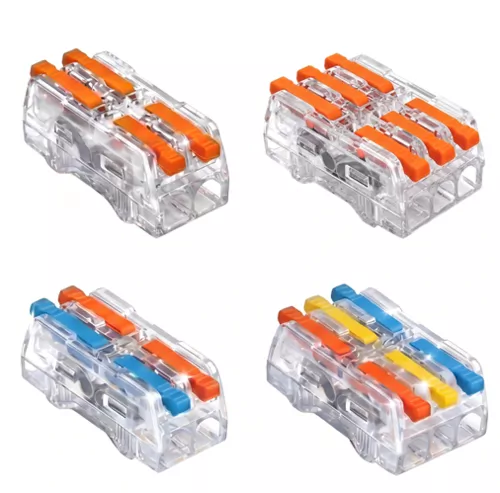

Lever Type Releasable Connectors

● Accept conductors 0.2 – 4.0m㎡

● Re-usable and for use with rigid/solid and flexible/stranded conductors.

● Polycarbonate (PC), Flame-retardant shell to UL 94V-2 housing. Polyamide(PA) levers.

● A transparent shell inserts the wire, and the insulation is stripped properly.

● IEC/EN 60998 Certified and UL1059 Listed.

Mã sản phẩm (Model No.)	Màu sắc (Color)	Số cực (Poles)	Định mức điện (Electrical Ratings)	Tiết diện dây dẫn (Wire Range)	Quy cách đóng gói (Packing)
PC662M	Clear + (Orange + Blue)	2	• 20A, 300V, 105℃ (UL) • 32A, 450V, T85℃ (IEC)	• 24-12 AWG (Sol / Str) • 0.2-4 mm² (Rigid / Flex)	• 300 Pcs/Bag • 3,000 Pcs/Ct
PC663M	Clear + (Orange + Yellow + Blue)	3	• 20A, 300V, 105℃ (UL) • 32A, 450V, T85℃ (IEC)	• 24-12 AWG (Sol / Str) • 0.2-4 mm² (Rigid / Flex)	• 200 Pcs/Bag • 2,000 Pcs/Ct

Mã sản phẩm (Model No.)

Màu sắc (Color)

Số cực (Poles)

Định mức điện (Electrical Ratings)

Tiết diện dây dẫn (Wire Range)

Quy cách đóng gói (Packing)

PC662M

Clear + (Orange + Blue)

• 20A, 300V, 105℃ (UL)
• 32A, 450V, T85℃ (IEC)

• 24-12 AWG (Sol / Str)
• 0.2-4 mm² (Rigid / Flex)

• 300 Pcs/Bag
• 3,000 Pcs/Ct

PC663M

Clear + (Orange + Yellow + Blue)

• 20A, 300V, 105℃ (UL)
• 32A, 450V, T85℃ (IEC)

• 24-12 AWG (Sol / Str)
• 0.2-4 mm² (Rigid / Flex)

• 200 Pcs/Bag
• 2,000 Pcs/Ct
