Technical informations

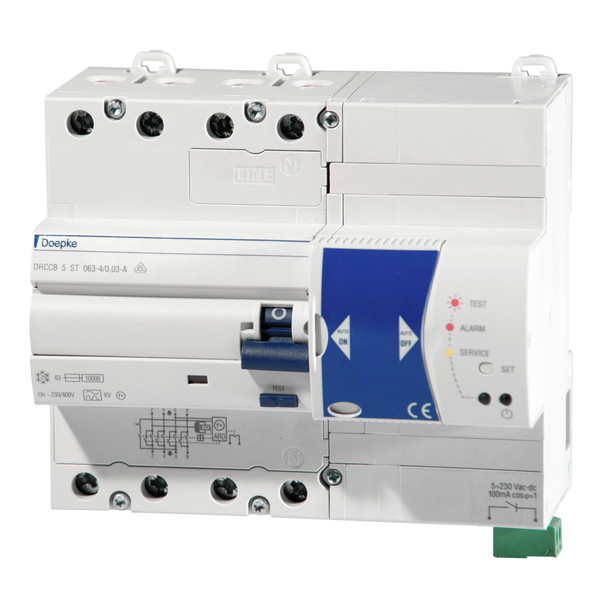

DRCCB 5 in Selftest Restart design provide automatic reclosing after tripping and an uninterruptible, automatic and regular function test of the residual current circuit-breaker. The power supply is integrated in the device and does not require additional units via the supply lines from above on the residual current circuit-breaker. The automatic function can be switched on and off by a slider button.
Please review the following options and select the models that best suit your installation requirements:
DRCCB 5 ST 025-2/0,03-A
09421501, Residual current circuit-breakers, two-pole, 25 A, 0,03 A, Type A, Selftest, N right
- ensitive to pulsating and alternating currents, mains-voltage-independent
- with self test
- large connection terminals up to 35 mm²
- VDE certified
DRCCB 5 ST 025-4/0,03-A
09421502, Residual current circuit-breakers, four-pole, 25 A, 0,03 A, Type A, Selftest, N right
- ensitive to pulsating and alternating currents, mains-voltage-independent
- with self test
- large connection terminals up to 35 mm²
- VDE certified
