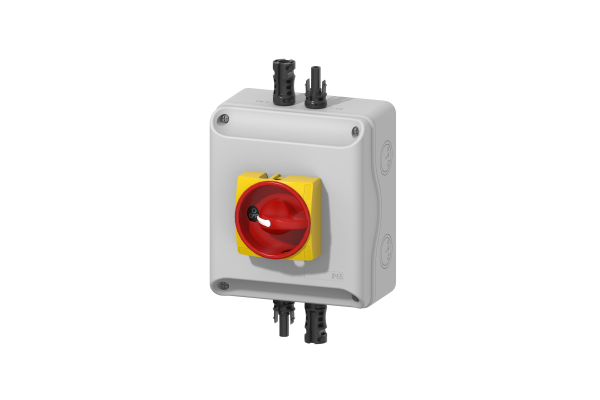

Introducing our Bremas Enclosed DC Isolator Switches, designed and manufactured in Italy for maximum efficiency and durability. These top-tier isolators, compliant with IEC EN 60947 standards, offer:
- Current Ratings: From 12 A up to 60 A
- Voltage Ratings: Up to 1500 Vdc
- Switching Capacity: Up to 4 DC poles
- Enclosure: ABS thermoplastic with IP65 protection
Features:
- Double insulation
- UV-resistant materials
- Lockable handle in the “OFF” position for added safety
- Compact, ergonomic design
- High terminal accessibility
- Cover interlock with knob in “ON” position
DC isolator switches
Serie IBP
Rated operational current at 600 Vdc up to 32 A
Rated operational current at 1000 Vdc up to 12 A
Serie IBK
Rated operational current at 750 Vdc up to 32 A
Rated operational current at 1000 Vdc up to 16 A
Serie IBM
Rated operational current at 700 Vdc up to 40 A
Rated operational current at 1000 Vdc up to 20 A
Serie IBX
Rated operational current at 1000 Vdc up to 60 A
Rated operational current at 1500 Vdc up to 30 A
